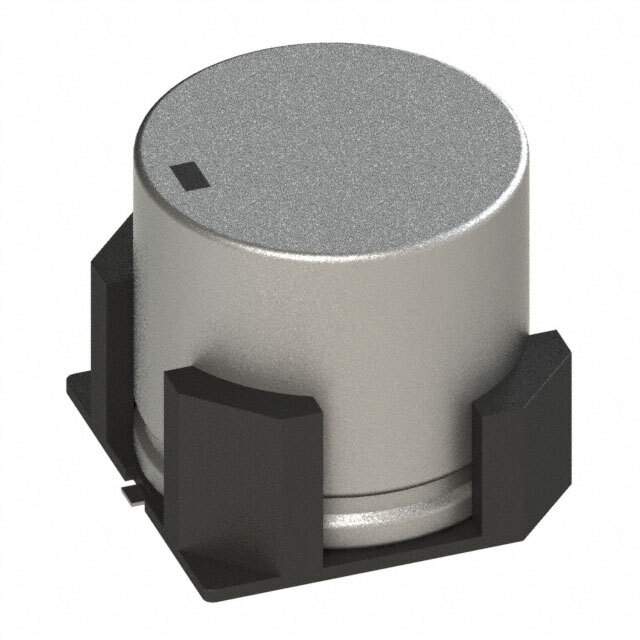

EEV-FK2A331V

Name: EEV-FK2A331V
Brand: Panasonic
SKU: 1022066
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEV-FK2A331V
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 100V SMD / 330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 153mOhm @ 100kHz 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FK, Anti-Vibration
Package	Tape & Reel
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	153mOhm @ 100kHz
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	687.75 mA @ 120 Hz
Ripple Current @ High Frequency	917 mA @ 100 kHz
Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.673" (17.10mm)
Surface Mount Land Size	0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEV-FK
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P124886DKR,P124886CT,P124886TR,EEVFK2A331V
Standard Package	125
Win Source Part Number	1022066-EEV-FK2A331V
Ultra Librarian 3D Model	Ultra Librarian EEV-FK2A331V CAD Model

Description

The Panasonic Electronic Components EEV-FK2A331V is an electronic component that is a part of the FK series of aluminum electrolytic capacitors.

Application: automotive applications
Capacitance: 330 µF
Voltage Rating: 100 V
Mounting: surface-mount device (SMD)
Packaging: tape and reel
Height: 0.673 inches
Diameter: 0.709 inches
