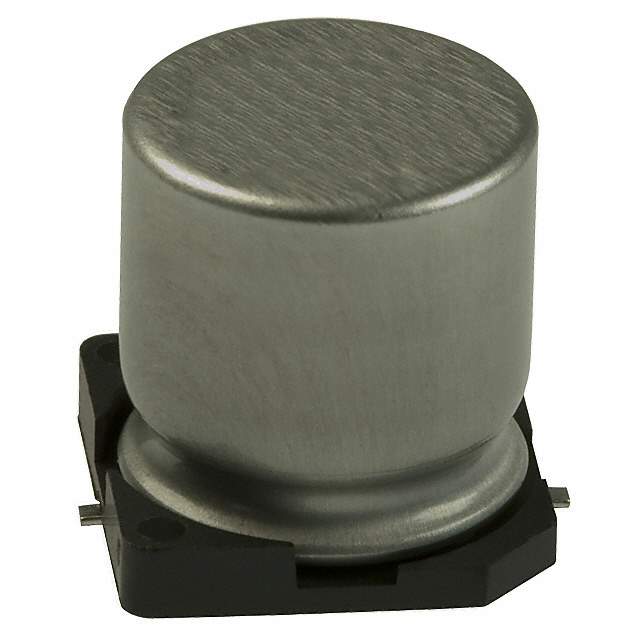

EEV-FK1H391Q Real Image
Same model may have multiple batches, images only for reference.

EEV-FK1H391Q

Part No EEV-FK1H391Q
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 390UF 20% 50V SMD / 390 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FK
Package Tape & Reel
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 675 mA @ 120 Hz
Ripple Current @ High Frequency 620 mA @ 100 kHz
Impedance 120 mOhms
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.543" (13.80mm)
Surface Mount Land Size 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEV-FK
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340536-EEV-FK1H391Q
Ultra Librarian 3D Model Ultra Librarian EEV-FK1H391Q CAD Model

Description

The Panasonic Electronic Components Capacitor is an aluminum electrolytic capacitor that is part of the FK series.

  • Capacitance: 390 µF
  • Tolerance: ±20%
  • Voltage Rating: 50 V
  • Rating: AEC-Q200
  • Impedance: 120 mOhms
  • Ripple Current @ Low Frequency: 675 mA @ 120 Hz
  • Ripple Current @ High Frequency: 620 mA @ 100 kHz
  • Polarization: Polarized
  • Surface Mount Land Size: 0.531" L x 0.531" W (13.50mm x 13.50mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C ~ 105°C
  • Series: FK
