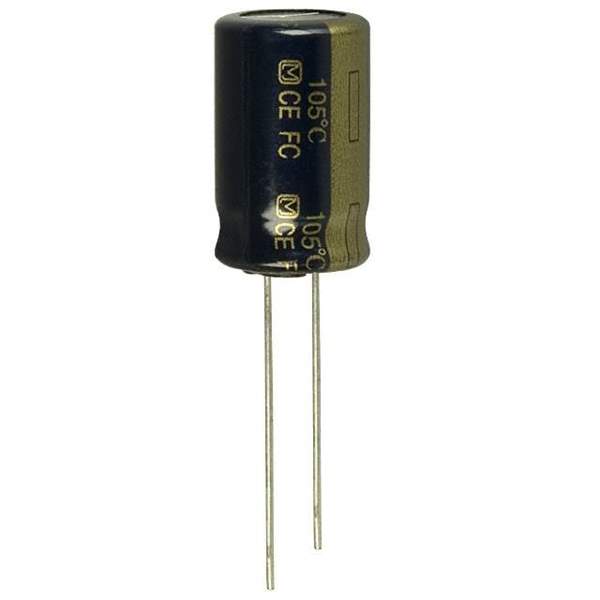

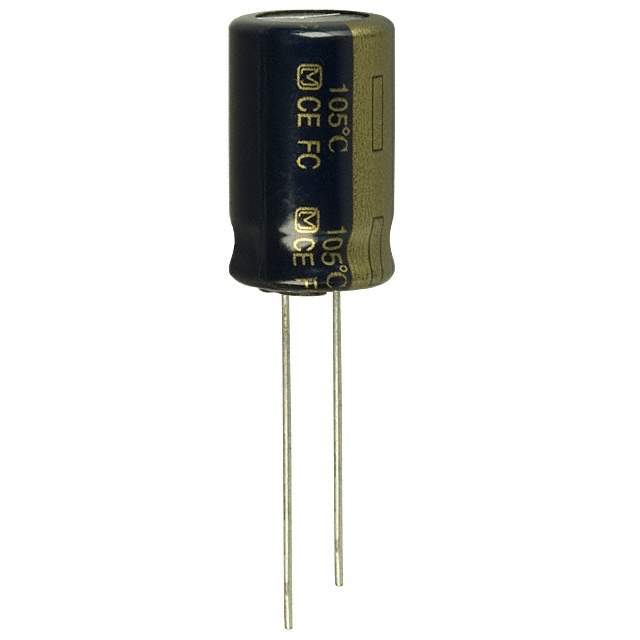

Same model may have multiple batches, images only for reference.

EEU-FC1V681

Name: EEU-FC1V681
Brand: Panasonic
SKU: 1330622
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EEU-FC1V681
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 35V RADIAL / 680 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Bulk
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	1.241 A @ 120 Hz
Ripple Current @ High Frequency	1.655 A @ 100 kHz
Impedance	38 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.787" (20.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	EEU-FC
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	Q2787545B,P10302,EEUFC1V681
Standard Package	100
Win Source Part Number	1330622-EEU-FC1V681
Ultra Librarian 3D Model	Ultra Librarian EEU-FC1V681 CAD Model

Alternative Products

Description

The Panasonic Electronic Components Aluminum Electrolytic Capacitors are an excellent choice for automotive applications.

Capacitance: 680 µF
Tolerance: ±20%
Voltage Rating: 35 V
Lead Spacing: 0.197" (5.00mm)
Impedance: 38 mOhms
ESR (Equivalent Series Resistance): 0
Lifetime: 5000 Hrs @ 105°C
Polarization: Polarized
Temperature Range: -55°C to 105°C
REACH Status: REACH unaffected
HTSUS: 8532.22.0020
Ripple Current (Low Frequency): 1.241 A @ 120 Hz
Ripple Current (High Frequency): 1.655 A @ 100 kHz
RoHS Status: ROHS3 compliant
Packaging: Bulk
