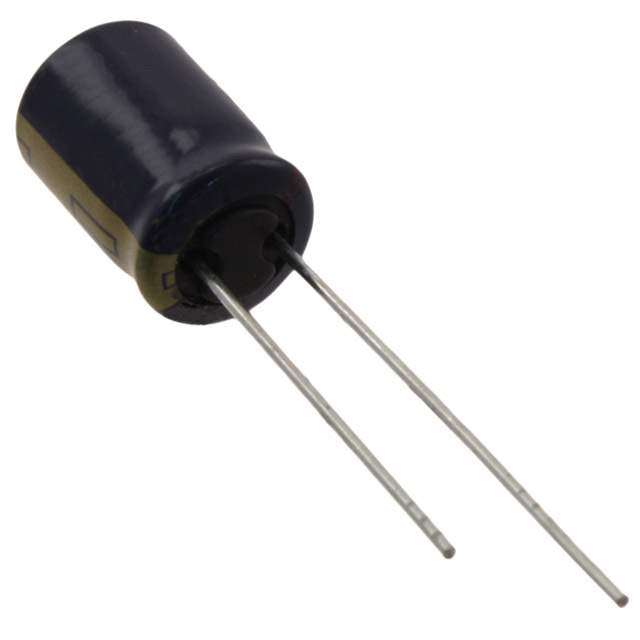

EEU-FC1J101LJ Real Image
Same model may have multiple batches, images only for reference.

EEU-FC1J101LJ

Part No EEU-FC1J101LJ
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V RADIAL / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Cut Tape (CT),Tape & Box (TB)
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 347.8 mA @ 120 Hz
Impedance 230 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Mounting Through Hole
Case / Package Radial, Can
Base Product Number EEU-FC
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 10-EEU-FC1J101LJTB,10-EEU-FC1J101LJCT,EEU-FC1J101LJ-ND,EEUFC1J101LJ
Standard Package 1,000
Win Source Part Number 1328882-EEU-FC1J101LJ
Ultra Librarian 3D Model Ultra Librarian EEU-FC1J101LJ CAD Model

Description

The Panasonic Electronic Components EEU-FC1J101LJ is an aluminum electrolytic capacitor that is designed for automotive applications.

  • Manufacturer: Panasonic Electronic Components
  • Product Name: EEU-FC1J101LJ
  • Capacitor Type: Aluminum Electrolytic Capacitor
  • Application: Automotive
  • Capacitance: 100μF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • AEC-Q200: Rated
  • ESR (Equivalent Series Resistance): Not Available
  • Impedance: 230 mOhms
  • Polarity: Polarized
  • Ripple Current: 347.8 mA @ 120 Hz
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial Can
  • Mounting Technology: Through-Hole
