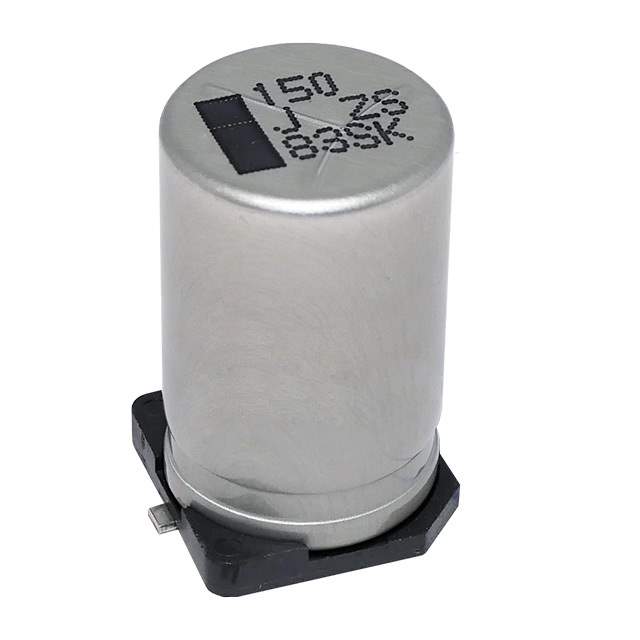

Same model may have multiple batches, images only for reference.

EEH-ZS1H221P

Name: EEH-ZS1H221P
Brand: Panasonic
SKU: 1336759
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEH-ZS1H221P
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 220UF 20% 50V SMD / 220 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 13mOhm 4000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	ZS
Package	Tape & Reel
Type	Hybrid
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	13mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	555 mA @ 100 Hz
Ripple Current @ High Frequency	3.7 A @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.661" (16.80mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEH-ZS
Standard Package	250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1336759-EEH-ZS1H221P
Ultra Librarian 3D Model	Ultra Librarian EEH-ZS1H221P CAD Model

Alternative Products

Description

The Panasonic EEH-ZS1H221P is a hybrid aluminum polymer capacitor with a capacitance of 220 μF and a voltage rating of 50 V. Panasonic

Capacitance: 220 μF
Voltage Rating: 50 V
Tolerance: ±20%
AEC-Q200 Rated: Yes
ESR (Equivalent Series Resistance): 13mOhm
Package / Case: Radial, Can - SMD
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Temperature Range: -55°C to 125°C
Ideal for: Automotive Applications
