Same model may have multiple batches, images only for reference.

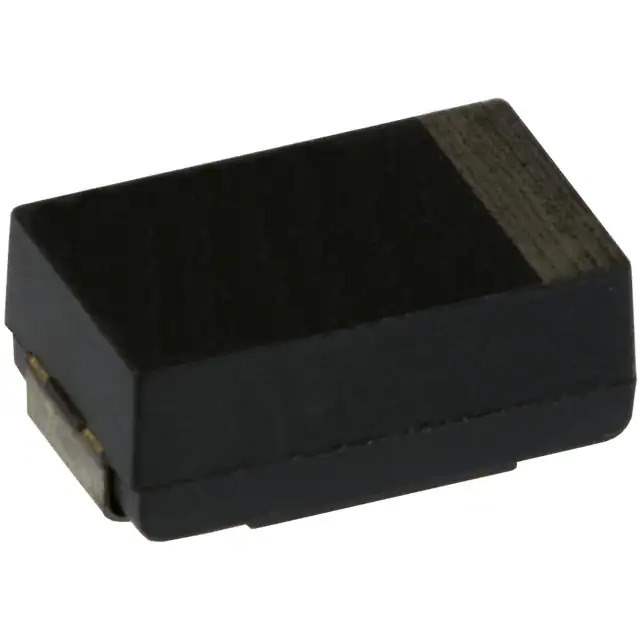

EEF-UD0D271XE Real Image
Same model may have multiple batches, images only for reference.

EEF-UD0D271XE

Part No EEF-UD0D271XE
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 270UF 20% 2V SMD / 270 μF 2 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 12mOhm 1000 Hrs @ 105°C
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic
Series SP-Cap UD
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 270 µF
Tolerance ±20%
Voltage - Rated 2 V
ESR (Equivalent Series Resistance) 12mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.118" (3.00mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Base Product Number EEF-UD
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 870155-EEF-UD0D271XE
Ultra Librarian 3D Model Ultra Librarian EEF-UD0D271XE CAD Model

Description

The Panasonic SP-Cap UD series is a polymer capacitor designed for general-purpose applications.

  • Capacitance: 270 μF
  • Voltage Rating: 2V
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Seated Height: 0.118" (3.00mm)
  • ESR: 12mOhm
  • Temperature Range: -40°C to 105°C
  • Mounting: surface mountable
  • Package: tape & reel
  • Series: SP-Cap UD
