Same model may have multiple batches, images only for reference.

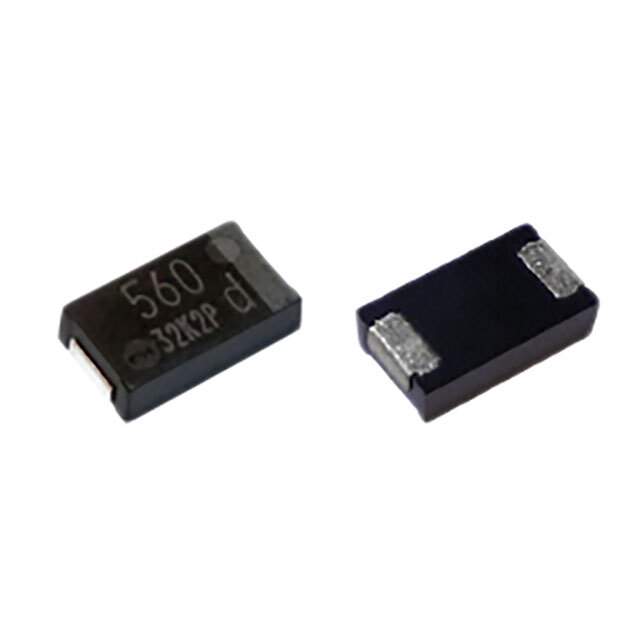

EEF-HX1C680R Real Image
Same model may have multiple batches, images only for reference.

EEF-HX1C680R

Part No EEF-HX1C680R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 68UF 20% 16V SMD  /  68 µF 16 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 40mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap HX
Package Tape & Reel (TR)
Product Status Not For New Designs
Type Polymer
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Ripple Current @ High Frequency 3.2 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.079" (2.00mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-HX
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEFHX1C680R
Standard Package 3,500
Win Source Part Number 1004068-EEF-HX1C680R
Ultra Librarian 3D Model Ultra Librarian EEF-HX1C680R CAD Model

Description

Panasonic Electronic Components presents SP-Cap HX polymer capacitors, which are designed for general-purpose applications.

  • Capacitance: 68 μF
  • Voltage Rating: 16 V
  • ESR (Equivalent Series Resistance): 40mOhm
  • Ripple Current: 3.2 A @ 100 kHz
  • Package/Case Size: 2917 (7343 Metric)
  • Height: 0.079" (2.00mm)
  • Standard Package: 3,500
  • Lifetime: 1000 Hrs @ 125°C
  • Operating Temperature: -55°C to 125°C
  • Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR)
