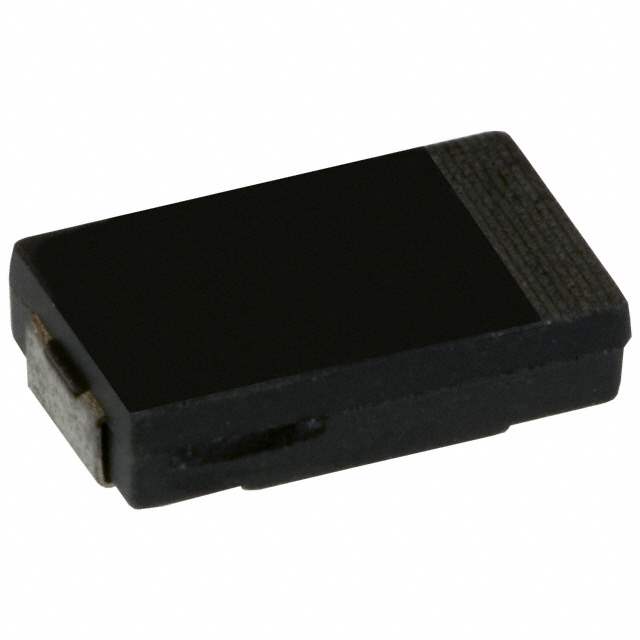

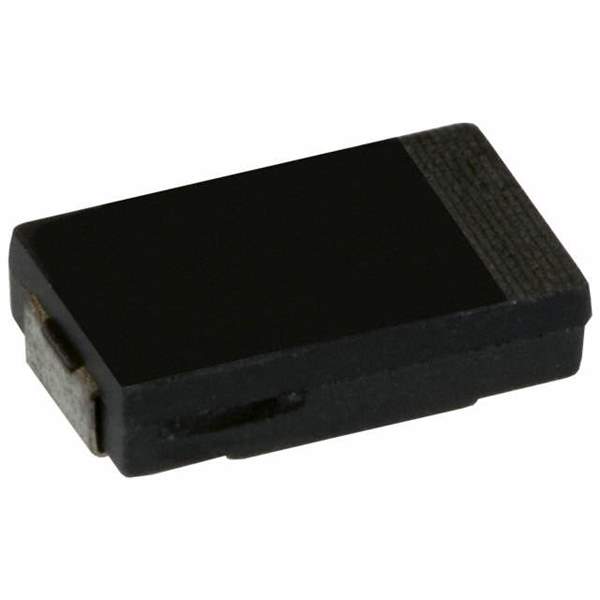

EEF-CD1B220R Real Image
Same model may have multiple batches, images only for reference.

EEF-CD1B220R

Part No EEF-CD1B220R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 12.5V SMD
Datasheet
EEF-CD1B220R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 22μF
Tolerance ±20%
Voltage Rating 12.5V
ESR 30 mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Applications General Purpose
Ripple Current - High Frequency 1.6A @ 100kHz
Height - Seated (Max) 0.071" (1.80mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 098507-EEF-CD1B220R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EEF-CD1B220R CAD Model

Description

The EEF-CD1B220R is optimized for excellent performance and long-term reliability, making it suitable for demanding electronic projects. Its innovative features meet the requirements of high-tech applications.

Applications

  • Wireless Communication Devices
  • Computing Hardware
  • Instrumentation
  • Battery-Powered Equipment

Features and Benefits

  • Resistance to high frequency
  • Excellent temperature stability
  • Reduced power loss
  • Compatibility with other electronic components

With a focus on durability and optimal functionality, the EEF-CD1B220R is a smart choice for modern electronic designs that demand precision and reliability.
