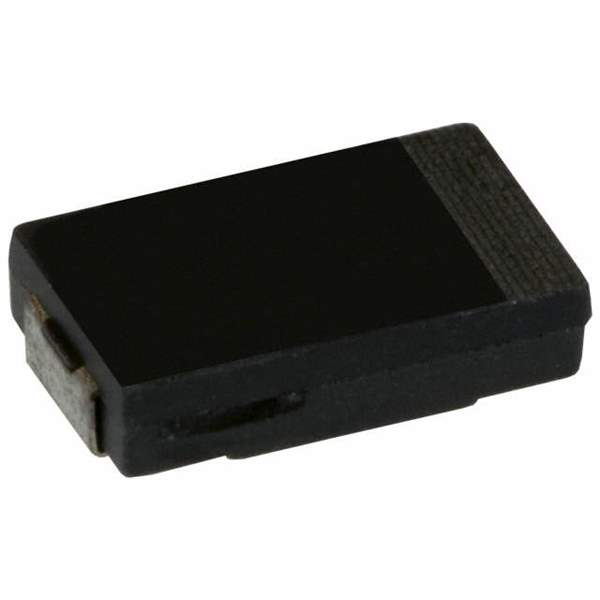

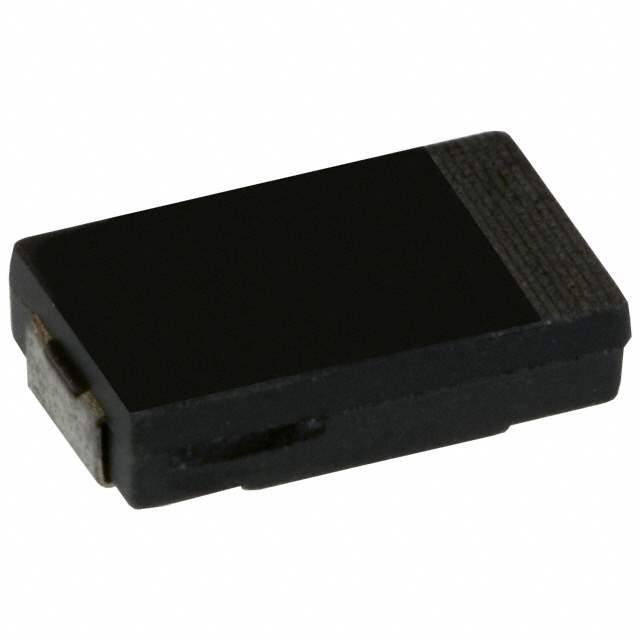

EEF-CD1B100R Real Image
Same model may have multiple batches, images only for reference.

EEF-CD1B100R

Part No EEF-CD1B100R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 10UF 20% 12.5V SMD
Datasheet
EEF-CD1B100R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 10μF
Tolerance ±20%
Voltage Rating 12.5V
ESR 60 mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Applications General Purpose
Ripple Current - High Frequency 1A @ 100kHz
Height - Seated (Max) 0.071" (1.80mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 111829-EEF-CD1B100R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EEF-CD1B100R CAD Model

Description

Overview

The EEF-CD1B100R is a versatile and reliable aluminum electrolytic capacitor designed to offer significant improvements in energy efficiency and circuit stability for advanced electronic systems.

Features and Benefits

  • Outstanding load life
  • High energy efficiency
  • Minimal ESR for lower energy loss
  • Optimized for reduced footprint

Applications

  • Electric vehicle systems
  • Renewable energy storage
  • 3D printing electronics
  • Smart grid technology

Utilizing the EEF-CD1B100R ensures enhanced reliability and performance in progressively evolving electronic configurations, especially where space and energy efficiency are a priority.
