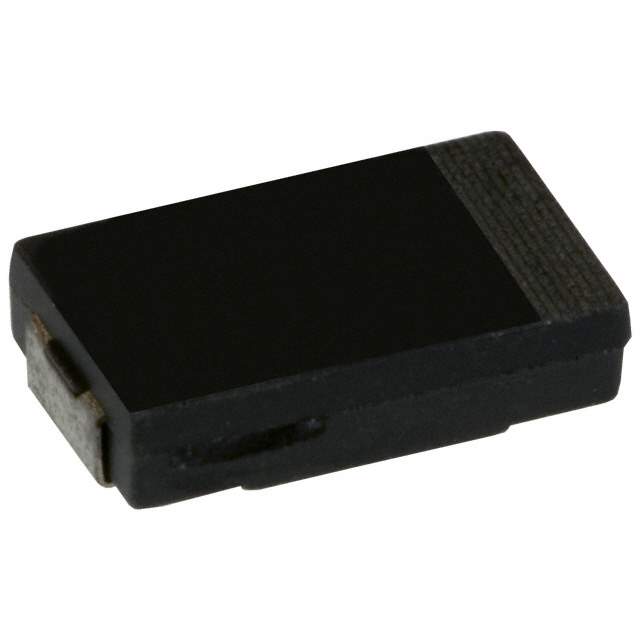

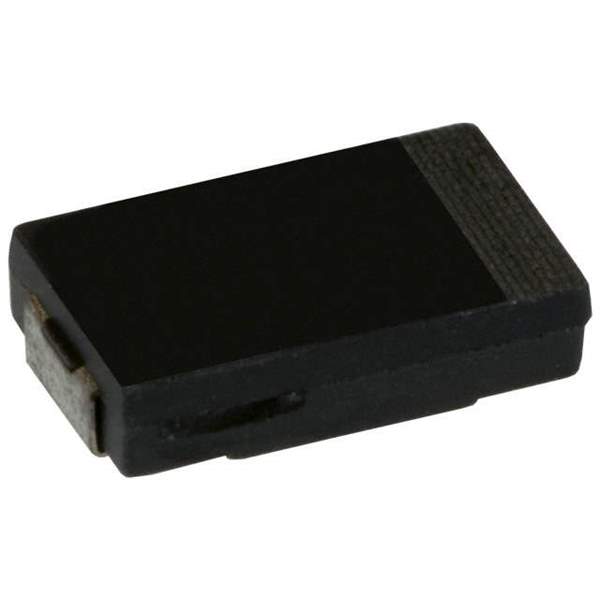

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap CD
Package Tape & Reel (TR)
Product Status Obsolete
Type Polymer
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-CD
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEFCD0J220ER,Q3447442B
Standard Package 3,500
Win Source Part Number 1190835-EEF-CD0J220ER
Ultra Librarian 3D Model Ultra Librarian EEF-CD0J220ER CAD Model

Description

The 1190835-EEF-CD0J220ER is a polymer capacitor with a capacitance of 22 µF and a voltage rating of 6.3 V from Panasonic SP-Cap CD.

  • Capacitance: 22 µF
  • Voltage Rating: 6.3 V
  • Type: SMD Capacitor
  • Tolerance: ±20%
  • ESR: 40mOhm
  • Ripple Current: 1.6 A @ 100 kHz
  • Height: 0.075" (1.90mm)
  • Application: General-purpose electronic circuits
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Packaging: Tape and Reel
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Status: Obsolete
