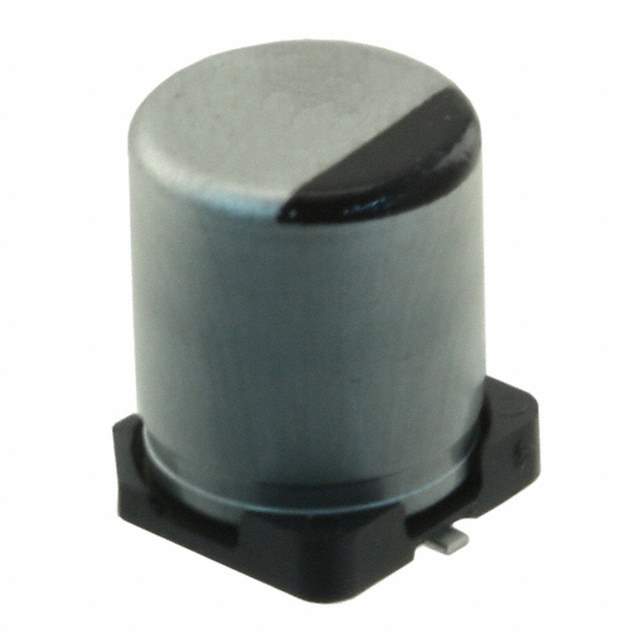

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Capacitance 470 µF
Mounting SMD (SMT)
Case / Package Radial
Contact Plating Tin
Diameter 6.3 mm
ESR (Equivalent Series Resistance) 160 mΩ
Features General Purpose
Height 7.7 mm
Height - Seated (Max) 8.001 mm
Lead Diameter 650 µm
Lead Pitch 1.8 mm
Leakage Current 47 µA
Length 7.7 mm
Life (Hours) 2000 hours
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 8
Packaging Cut Tape (CT)
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 600 mA
Ripple Current (AC) 600 mA
RoHS Compliant
Schedule B 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 10 V
Voltage Rating 10 V
Voltage Rating (DC) 10 V
Win Source Part Number 1025926-EEEFTA471XAP
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EEEFTA471XAP CAD Model

Description

The EEEFTA471XAP is an aluminum capacitor from Panasonic.

  • Capacitance: 470 μF
  • Tolerance: 20%
  • Leakage Current: 47 μA
  • ESR (Equivalent Series Resistance): 160 mΩ
  • Ripple Current: 600 mA
  • Maximum Operating Temperature: 105 °C
  • Case/Package: Radial
  • Height: 7.7 mm
  • Mounting Type: Surface Mount
  • Lead Pitch: 1.8 mm
  • RoHS Compliant: Yes
  • Popularity: Low
