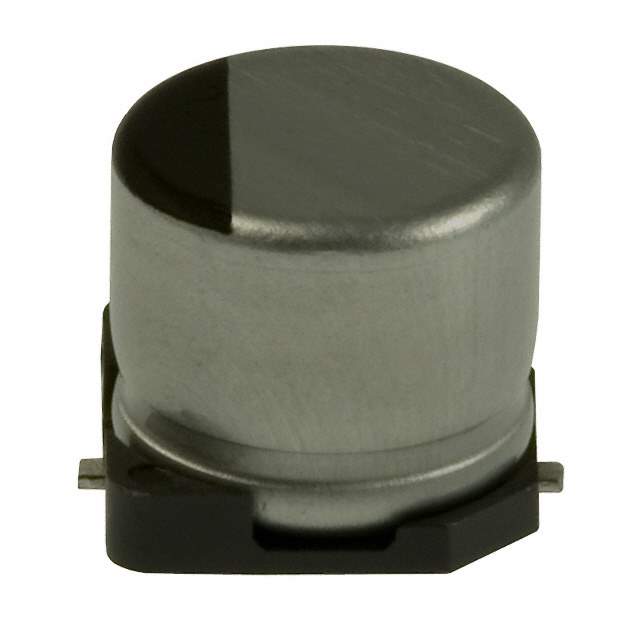

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Capacitance 100 µF
Mounting SMD (SMT)
Case / Package Radial
Contact Plating Tin
Diameter 6.3 mm
Dielectric Material Aluminium
Features General Purpose
Height 5.4 mm
Height - Seated (Max) 5.4102 mm
Lead Free Yes
Lead Length 2.6 mm
Lead Pitch 2.2 mm
Leakage Current 3 µA
Length 5.5 mm
Life (Hours) 2000 hours
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount PCB, Surface Mount
Number of Pins 2
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 71 mA
Ripple Current (AC) 71 mA
RoHS Compliant
Schedule B 8532220020, 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 6.3 V
Voltage Rating 6.3 V
Voltage Rating (AC) 6.3 V
Voltage Rating (DC) 6.3 V
Width 6.6 mm
Win Source Part Number 992299-EEE0JA101SP
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EEE0JA101SP CAD Model

Description

The Panasonic EEE0JA101SP is an Aluminum Capacitor that has a capacitance of 100 µF and a voltage rating of 6.3 V.

  • Capacitance: 100 µF
  • Voltage Rating: 6.3 V
  • Tolerance: 20%
  • Leakage Current: 3 µA
  • Height: 5.4 mm
  • Diameter: 6.3 mm
  • Mounting Technology: SMD (SMT)
  • Packaging: Cut Tape
  • Popularity: Low
  • Supply and Demand Status: Short
