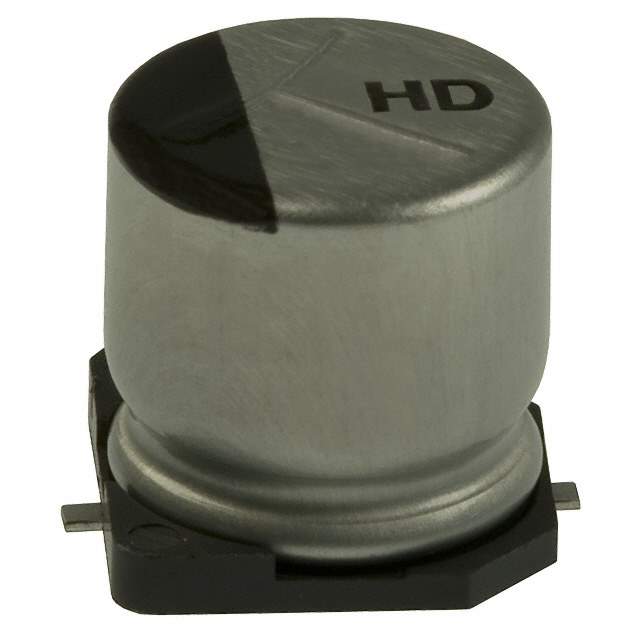

Same model may have multiple batches, images only for reference.

EEE-HD0J332AQ

Name: EEE-HD0J332AQ
Brand: Panasonic
SKU: 1340392
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-HD0J332AQ
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 3300UF 20% 6.3V SMD / 3300 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	HD
Package	Tape & Reel
Capacitance	3300 µF
Tolerance	±20%
Voltage - Rated	6.3 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive, High Temperature Reflow
Ripple Current @ Low Frequency	680 mA @ 120 Hz
Ripple Current @ High Frequency	802.4 mA @ 100 kHz
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEE-HD
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1340392-EEE-HD0J332AQ
Ultra Librarian 3D Model	Ultra Librarian EEE-HD0J332AQ CAD Model

Description

The Panasonic Electronic Components EEE-HD0J332AQ is an aluminum electrolytic capacitor that is part of the HD series.

Series: HD
Capacitance: 3300 µF
Voltage Rating: 6.3V
Tolerance: ±20%
AEC-Q200: Yes
Package: Tape and Reel
Standard Package: 200
Application: Automotive, High-Temperature Reflow
