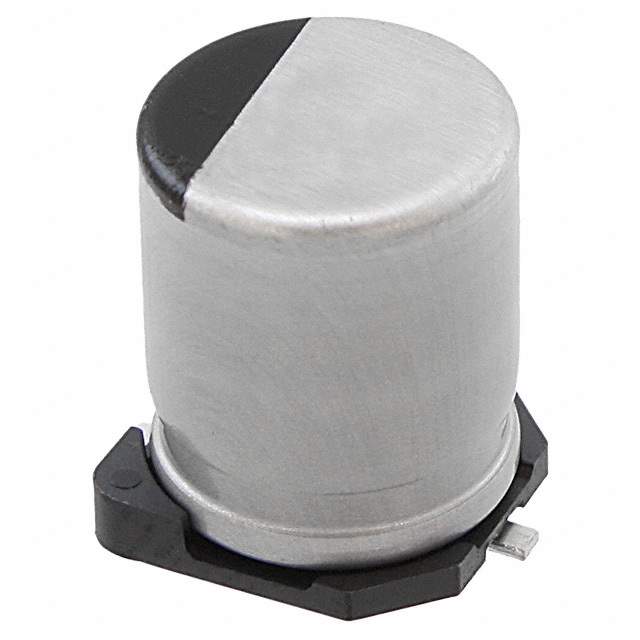

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FT
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 80mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 552.5 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FT
Other Names PCE5010TR,EEEFT1E471AP,PCE5010CT,PCE5010DKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307314-EEE-FT1E471AP
Ultra Librarian 3D Model Ultra Librarian EEE-FT1E471AP CAD Model

Description

Panasonic Electronic Components' 1307314-EEE-FT1E471AP is a polarized aluminum electrolytic capacitor that has a capacitance of 470 µF and a voltage rating of 25 V.

  • AEC-Q200 Rated: Yes
  • ESR: 80mOhm @ 100kHz
  • Operating Temperature: -55°C and 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Packaging: Radial, Can - SMD
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Category: Capacitors
