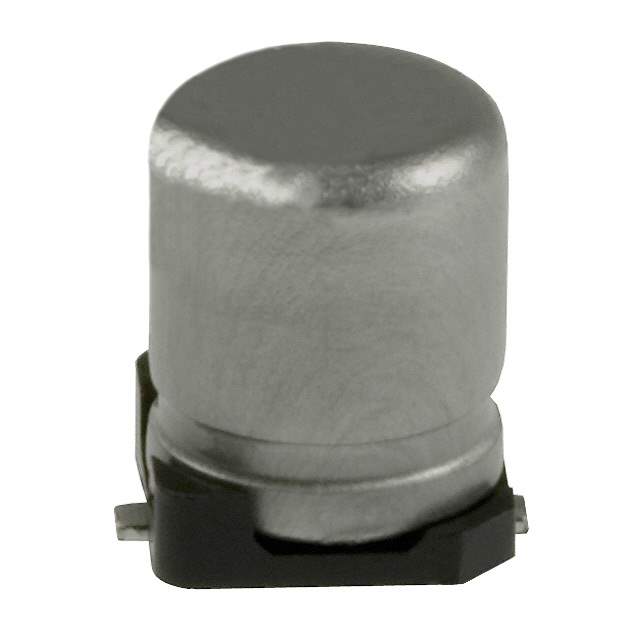

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Bi-Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 28 mA @ 120 Hz
Ripple Current @ High Frequency 47.6 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-1EA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number EEE1EA100NP,PCE4294CT,PCE4294TR,PCE4294DKR
Standard Package 1,000
Win Source Part Number 1331144-EEE-1EA100NP
Ultra Librarian 3D Model Ultra Librarian EEE-1EA100NP CAD Model

Description

The Panasonic Electronic Components 1331144-EEE-1EA100NP is a surface mount aluminum electrolytic capacitor with a capacitance of 10 µF and a voltage rating of 25 V.

  • Capacitance: 10 µF
  • Voltage Rating: 25 V
  • Application: Automotive
  • Tolerance: ±20%
  • Polarization: Bi-Polar
  • Ripple Current (Low Frequency): 28 mA @ 120 Hz
  • Ripple Current (High Frequency): 47.6 mA @ High Frequency
  • Surface Mount Land Size: 0.260" L x 0.260" W
  • Height: 0.213"
  • Series: EEE-1EA series
  • Case/Package: Radial, Can - SMD
  • AEC-Q200 Rated: Yes
  • Lifetime: 2000 hours @ 85°C
  • RoHS Compliant: Yes
