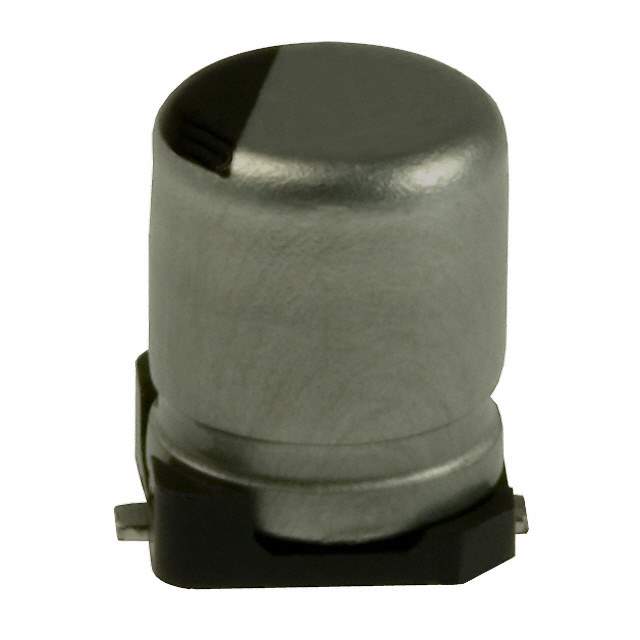

EEE-1AA330WR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 29 mA @ 120 Hz
Ripple Current @ High Frequency 49.3 mA @ 10 kHz
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-1AA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE3873DKR,PCE3873CT,PCE3873TR,EEE1AA330WR
Standard Package 2,000
Win Source Part Number 1331135-EEE-1AA330WR
Ultra Librarian 3D Model Ultra Librarian EEE-1AA330WR CAD Model

Description

Panasonic Electronic Components EEE-1AA330WR is an aluminum electrolytic capacitor designed for surface mount applications.

  • Capacitance: 33µF
  • Tolerance: ±20%
  • Voltage Rating: 10V
  • Size: 0.157" Dia (4.00mm)
  • Height: 0.213" (5.40mm)
  • Packaging: Reel
  • Units per Reel: 2,000
  • Rated: AEC-Q200
  • Operating Temperature: -40°C to 85°C
  • Lifetime: 1000 hours @ 85°C
