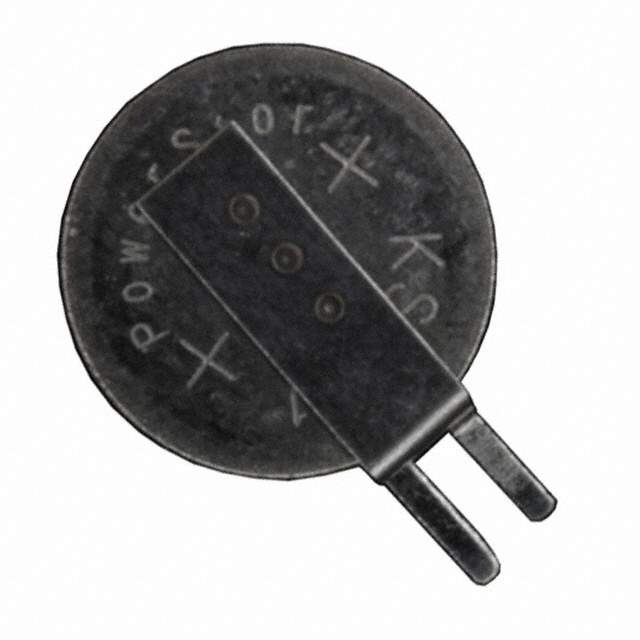

KS-3R3224-R Real Image
Same model may have multiple batches, images only for reference.

KS-3R3224-R

Part No KS-3R3224-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 220MF -20% +80% 3.3V SMD / Cap Supercap 0.22F 3.3V -20% to 80% (6.8 X 2.1mm) SMD Stacked Coin 200 Ohm 1000h 60°C Bulk
Datasheet
KS-3R3224-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Eaton
Series PowerStor KS
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 220mF
Tolerance -20%, +80%
Voltage Rating DC 3.3V
ESR (Equivalent Series Resistance) 200 Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination SMD (SMT) Tabs
Mounting SMD
Package Coin, Thin Terminals - Same Sides
Dimension 0.268" Dia (6.80mm)
Height - Seated (Maximum) 0.110" (2.80mm)
Operating Temperature Range -10°C ~ 60°C
Win Source Part Number 792870-KS-3R3224-R
Popularity Medium
Supply and Demand Status Balance
Family Name KS
Introduction Date December 17, 2007
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian KS-3R3224-R CAD Model

Description

This electronic component is manufactured by Eaton and is part of the PowerStor KS series.

  • Operating Temperature Range: -10°C to 60°C
  • Termination: SMD (SMT) Tabs
  • Package: Coin, Thin Terminals - Same Sides
  • Mounting: SMD
  • Capacitance: 220mF (-20%, +80%)
  • ESR: 200 Ohm @ 1kHz
  • Lifetime @ temp: 1000 Hrs @ 70°C
  • Status: Obsolete (EOL)
  • Family: KS
  • Dimension: 0.268" Dia (6.80mm)
  • Height - seated (maximum): 0.110" (2.80mm)
  • Voltage Rating DC: 3.3V
  • Alternative Parts: DCK-3R3E224U-E, DCK-3R3D224, KSR-3R3204-R
  • Introduction Date: December 17, 2007
  • ECCN: EAR99
  • Estimated EOL Date: Obsolete/end of life
  • Supply and Demand: Balanced
