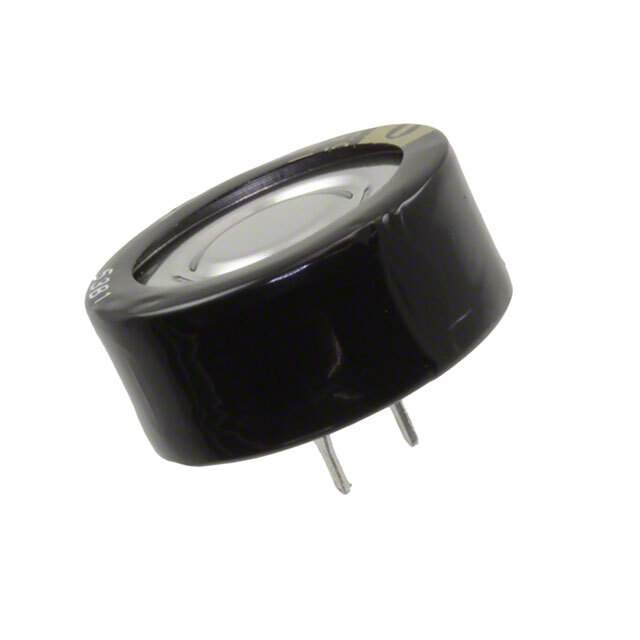

EEC-RF0H684 Real Image
Same model may have multiple batches, images only for reference.

EEC-RF0H684

Part No EEC-RF0H684
Manufacturer Panasonic
Catalog Electric Double Layer Capacitors, Supercaps
Description Cap Supercap 0.68F 5.5V -20% to 80% (21.5 X 9.5mm) Radial Stacked Coin 5mm 2000h 85°C Tray / CAP 680MF -20% +80% 5.5V T/H
Datasheet
EEC-RF0H684 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series RF
Packaging Bulk
Capacitance 680mF
Tolerance -20%, +80%
Voltage Rating DC 5.5V
ESR (Equivalent Series Resistance) 40 Ohm
Lifetime @ Temp. 2000 Hrs @ 85°C
Termination PC Pins
Mounting Style Through Hole
Package Radial, Can
Lead Spacing 0.197" (5.00mm)
Dimension 0.846" Dia (21.50mm)
Height - Seated (Maximum) 0.374" (9.50mm)
Operating Temperature Range -25°C ~ 85°C
Win Source Part Number 785117-EEC-RF0H684
Popularity Medium
Supply and Demand Status Limited
Family Name RF
Introduction Date July 27, 2008
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EEC-RF0H684 CAD Model

Description

The Panasonic Electronic Components RF series capacitor is a radial, can type capacitor from Panasonic Electronic Components.

  • Capacitance: 680mF
  • Voltage Rating: 5.5VDC
  • Tolerance: -20% to +80%
  • ESR: 40 Ohm
  • Lead Spacing: 0.197" (5.00mm)
  • Dimension: 0.846" Dia (21.50mm)
  • Height: 0.374" (9.50mm)
  • Lifetime: 2000 Hrs @ 85°C
  • Product Status: Obsolete/End of Life
  • Packaging: Bulk
