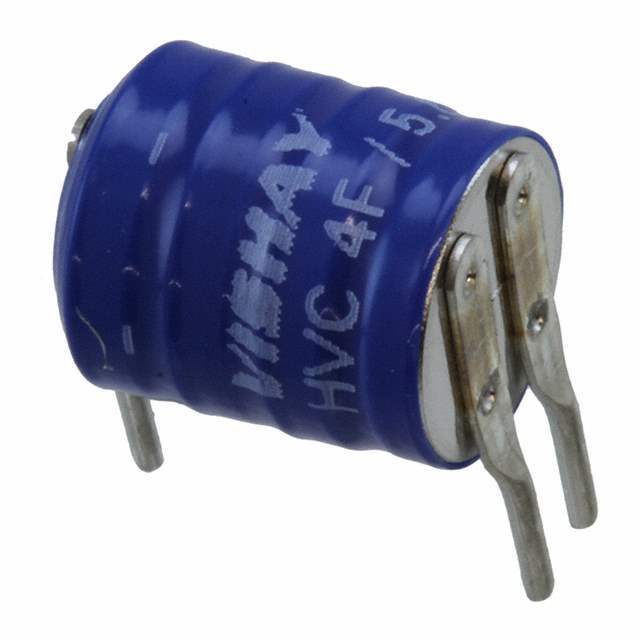

MAL219690112E3 Vishay Beyschlag/Draloric/BC Components
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1310012-MAL219690112E3
Category Capacitors >Electric Double Layer Capacitors (EDLC)>Supercapacitors
Manufacturer Vishay Beyschlag/Draloric/BC Components
Packaging Bulk
Part Status Active
Capacitance 90 F
Tolerance -20%, +80%
Voltage - Rated 5.6 V
ESR (Equivalent Series Resistance) 60mOhm
Lifetime @ Temp. 2000 Hrs @ 85°C
Termination PC Pins
Ultra Librarian 3D Model Ultra Librarian MAL219690112E3 CAD Model

Description

  • Polarized energy storage capacitor with high capacity and energy density
  • Voltage flexibility: 1.4 V (single cell) to 2.8 V / 4.2 V / 5.6 V / 7.0 V / 8.4 V (multiple cells)
  • Available in stacked through-hole (STH, radial), surface-mount flat (SMF) and lay flat configurations (LFC) with wire and connectors
  • Useful life: up to 2000 h at 85 °C
  • No cell balancing necessary
  • Soft and low transient-voltage-controlled charging characteristic
  • Non-hazardous electrolyte
  • Maintenance-free, no service necessary
  • Evaluation kits for engineering are available under ordering code: MAL219699001E3
  • UL 810A recognized
