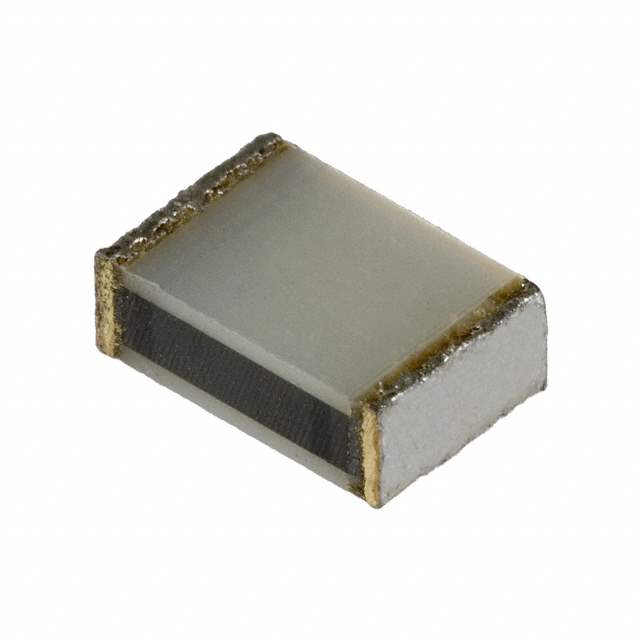

ECW-U2563V16 Real Image
Same model may have multiple batches, images only for reference.

ECW-U2563V16

Part No ECW-U2563V16
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.056UF 5% 250VDC 2416
Datasheet
ECW-U2563V16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.056μF
Tolerance ±5%
Voltage Rating - DC 250V
Temperature Range - Operating -55°C to 85°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.161" W (6.00mm x 4.10mm)
Height - Seated (Max) 0.122" (3.10mm)
Termination Solder Pads
Applications High Frequency, Switching; High Pulse, DV/DT
Win Source Part Number 107208-ECW-U2563V16
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECW-U2563V16 CAD Model

Description

ECW-U2563V16

The ECW-U2563V16 capacitor is engineered to meet high performance standards, standing out with its low-loss factor and high-grade dielectric properties. This component is perfect for applications where energy efficiency and reliability are priority.

Features and Benefits

  • Superior film layers for increased thermal stability and load life.
  • Minimal energy dissipation enhances overall circuit efficiency.
  • Compact and flexible design expands installation options.

Applications

  • DC-DC converters
  • AC-DC input filtering
  • PFC circuits
  • Automation controls

Additionals: The ECW-U2563V16 is compliant with global safety standards, making it an eco-friendly choice for a wide range of innovative electronic solutions that aim for reduced carbon footprints.
