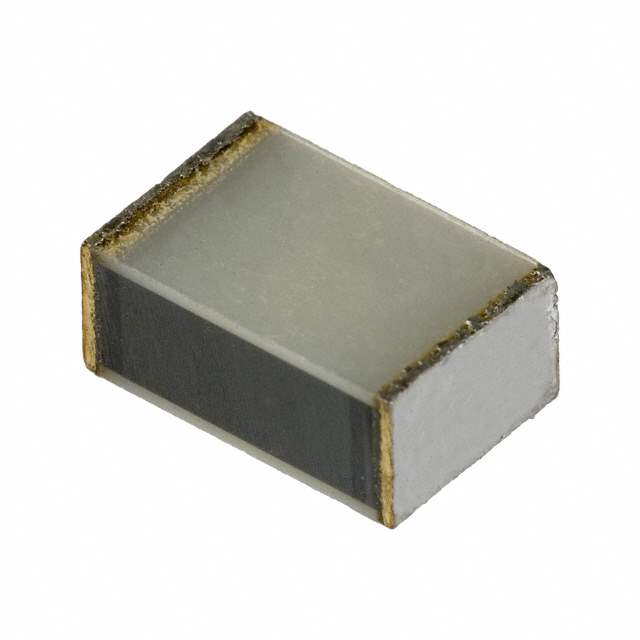

ECW-U1824KCV Real Image
Same model may have multiple batches, images only for reference.

ECW-U1824KCV

Part No ECW-U1824KCV
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.82UF 10% 100VDC 3925
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.82μF
Tolerance ±10%
Voltage Rating - DC 100V
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.386" L x 0.248" W (9.80mm x 6.30mm)
Height - Seated (Max) 0.177" (4.50mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 116763-ECW-U1824KCV
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian ECW-U1824KCV CAD Model

Description

Product Overview

The ECW-U1824KCV is a high-quality film capacitor designed for various electronic applications. Featuring a stable capacitance and low dissipation factor, this component is an excellent choice for high-frequency circuits.

Features and Benefits

  • Temperature Range: -55°C to +125°C
  • Capacitance Tolerance: ±10%
  • Low ESR and ESL
  • High reliability with excellent electrical properties

Applications

  • Switching power supplies
  • DC-DC converters
  • Snubber circuits
  • Consumer electronics

With its robust design and reliable performance, the ECW-U1824KCV is a perfect fit for demanding projects requiring stable capacitance under varying conditions.
