Same model may have multiple batches, images only for reference.

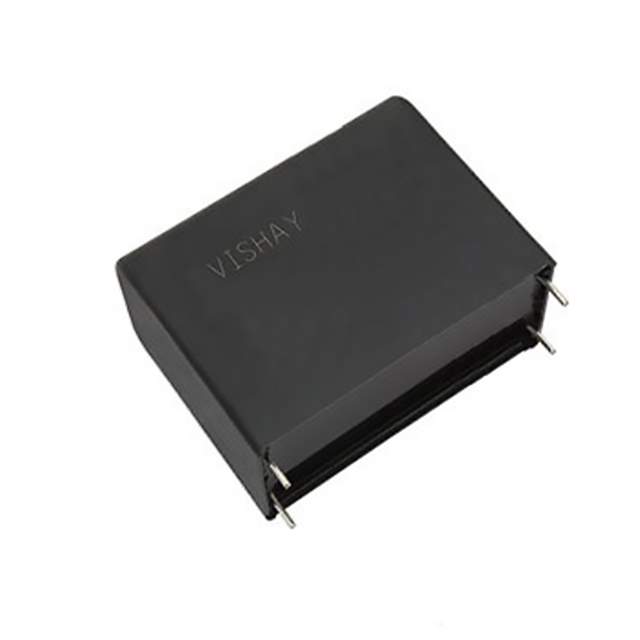

MKT1820522015 Real Image
Same model may have multiple batches, images only for reference.

MKT1820522015

Part No MKT1820522015
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 2.2UF 10% 100VDC RADIAL / 2.2 µF Film Capacitor 63V 100V Polyester, Metallized Radial
Datasheet
MKT1820522015 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKT1820
Package Bulk
Capacitance 2.2 µF
Tolerance ±10%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications DC Link, DC Filtering
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0010
Other Names 1820522015
Standard Package 500
Win Source Part Number 1023716-MKT1820522015
Ultra Librarian 3D Model Ultra Librarian MKT1820522015 CAD Model

Description

This film capacitor from Vishay Beyschlag/Draloric/BC Components has a capacitance of 2.2 µF and a tolerance of ±10%.

  • Voltage Rating: 63V AC and 100V DC
  • Application: DC link and DC filtering applications
  • Package: Radial
  • Mounting: Through-hole
