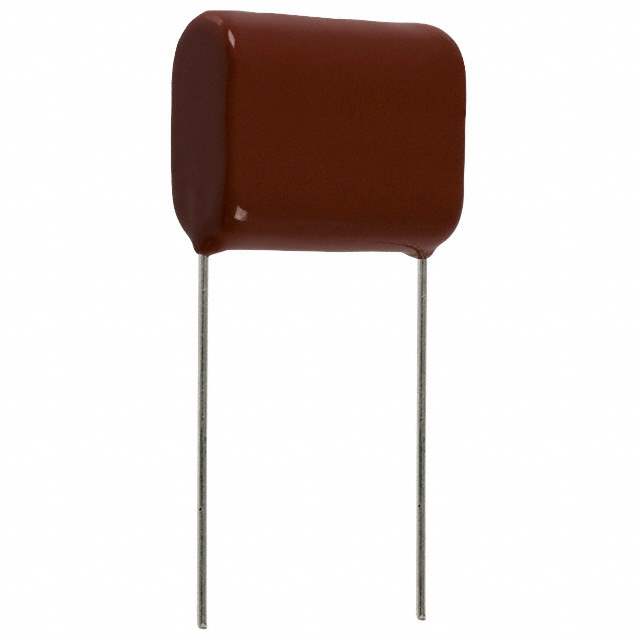

ECQ-E6564KF Real Image
Same model may have multiple batches, images only for reference.

ECQ-E6564KF

Part No ECQ-E6564KF
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.56UF 10% 630VDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Active
Capacitance 0.56μF
Tolerance ±10%
Voltage Rating - DC 630V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.024" L x 0.394" W (26.00mm x 10.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications General Purpose
Win Source Part Number 015166-ECQ-E6564KF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ECQ-E6564KF CAD Model

Description

Product Overview

ECQ-E6564KF is a versatile film capacitor known for its adaptability across various electronic applications. Its design emphasizes longevity and consistent performance.

Features and Benefits

  • Extended Operating Life: Built for longevity, providing reliable performance over extended periods.
  • High-Frequency Stability: Excels in applications with high-frequency signals.
  • Moisture Resistance: Features a protective coating for enhanced moisture resistance.
  • Space Efficient: Suitable for applications requiring space constraints.

Applications

  • Telecommunication systems
  • Consumer electronic devices
  • High-frequency broadband circuits
  • Control systems
