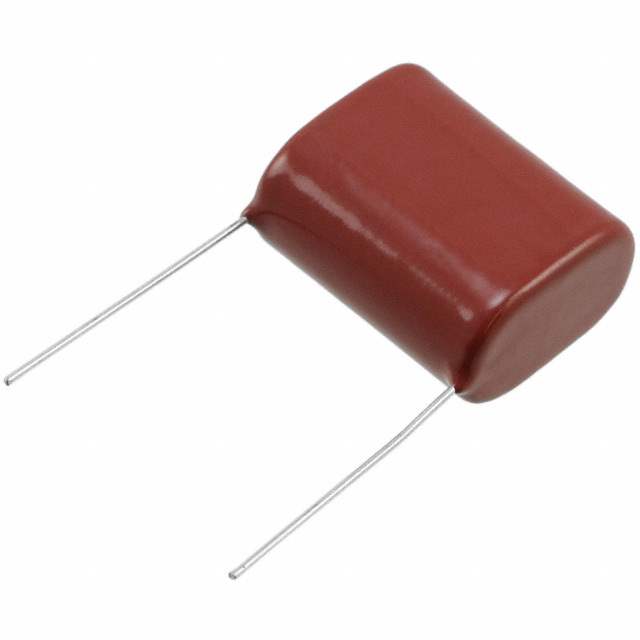

ECQ-E6225KF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Active
Capacitance 2.2μF
Tolerance ±10%
Voltage Rating - DC 630V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.220" L x 0.768" W (31.00mm x 19.50mm)
Height - Seated (Max) 1.181" (30.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications General Purpose
Win Source Part Number 117690-ECQ-E6225KF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ECQ-E6225KF CAD Model

Description

Product Overview

The ECQ-E6225KF is a high-performance film capacitor known for its robustness and suitability in a wide array of applications. This capacitor offers excellent electrical conductivity while maintaining durability.

Features and Benefits

  • Reliability: Engineered for long-lasting performance, ensuring consistent operation over time.
  • Wide Temperature Range: Withstands varying temperatures, making it versatile for different environments.
  • High Electrical Stability: Maintains stable electrical characteristics under diverse circuit conditions.
  • AEC-Q200 Compliant: Meets automotive electronic component standards.

Applications

  • Automotive electronics
  • Communication devices
  • AC applications
  • Industrial machinery
