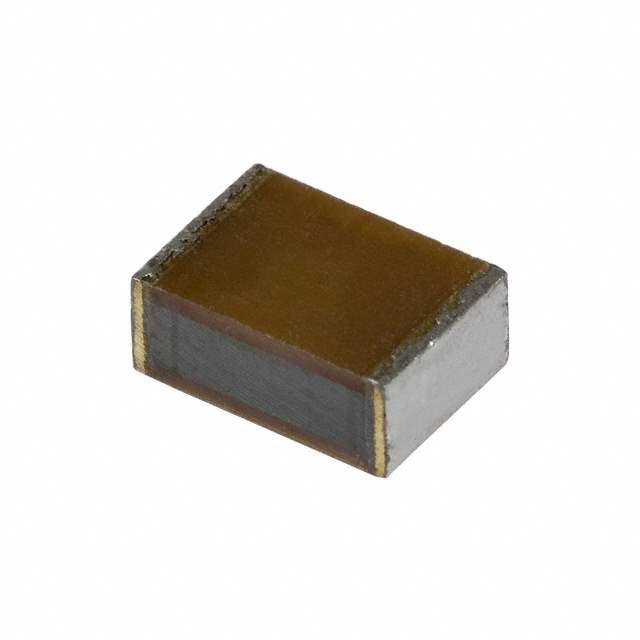

ECH-U1124JC9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.12μF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.280" L x 0.197" W (7.10mm x 5.00mm)
Height - Seated (Max) 0.146" (3.70mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 118375-ECH-U1124JC9
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian ECH-U1124JC9 CAD Model

Description

Description:

The ECH-U1124JC9 film capacitor combines advanced technology with reliable performance, designed to meet the rigorous demands of modern electronics. Its robust design and excellent circuitry compatibility make it a versatile component for numerous applications.

Features & Benefits:

  • High voltage rating for demanding applications.
  • Superior tolerance to environmental stressors.
  • Stable performance across varied temperature ranges.
  • Optimized for use in high-speed circuits.

Applications:

  • Military electronics
  • High-speed data networks
  • Consumer electronics
  • Power management systems
