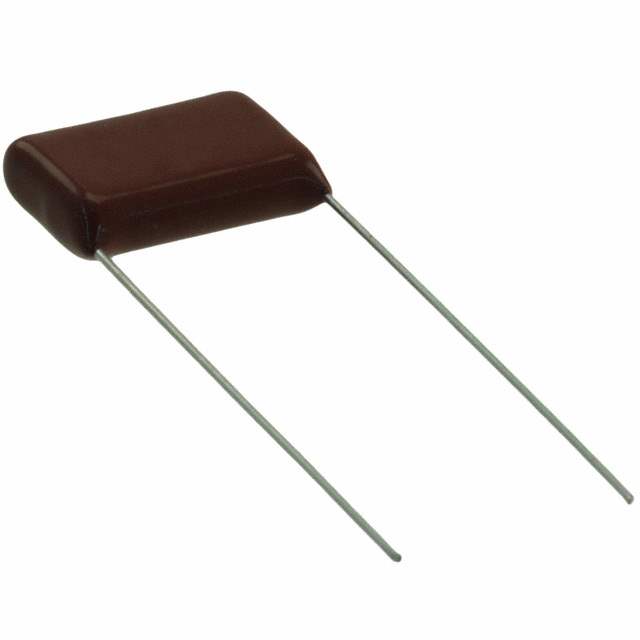

ECQ-E6104KF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Active
Capacitance 0.1μF
Tolerance ±10%
Voltage Rating - DC 630V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 0.728" L x 0.248" W (18.50mm x 6.30mm)
Height - Seated (Max) 0.591" (15.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications General Purpose
Win Source Part Number 122374-ECQ-E6104KF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ECQ-E6104KF CAD Model

Description

The ECQ-E6104KF capacitor combines advanced technology with reliable performance, making it a preferred choice for various electronic applications.

Features and Benefits

  • Capacitance: 0.1uF
  • Voltage Rating: 600V
  • Temperature Range: -40°C to 105°C
  • High frequency and impulse withstand capabilities
  • Robust construction

Applications

  • High-frequency power applications
  • Electronic ballast applications
  • Inverter circuits
  • Air conditioning units

The ECQ-E6104KF offers exceptional electrical characteristics and high heat resistance, making it an excellent component for demanding electronic designs.
