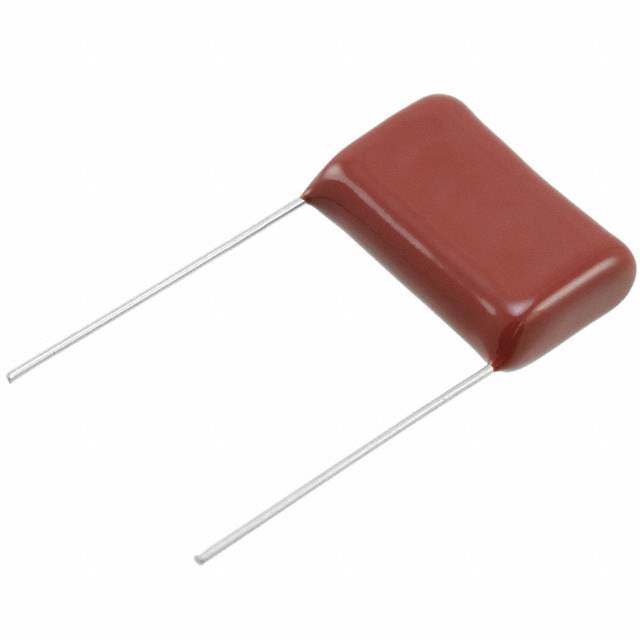

ECQ-E4105JF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±5%
Voltage Rating - DC 400V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.024" L x 0.335" W (26.00mm x 8.50mm)
Height - Seated (Max) 0.748" (19.00mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications General Purpose
Win Source Part Number 102702-ECQ-E4105JF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ECQ-E4105JF CAD Model

Description

The ECQ-E4105JF is a top-tier polyester film capacitor offering superior electrical characteristics and moisture resistance, making it ideal for rugged application environments.

Features and Benefits

  • Capacitance: 1uF
  • Voltage Rating: 400V
  • Temperature Range: -40°C to 85°C
  • High capacitance stability
  • Low power loss

Applications

  • AC circuits
  • Lighting ballasts
  • Automotive electronics
  • Instrumentation

Engineered for durability, the ECQ-E4105JF stands out in its capability to withstand harsh environmental conditions while ensuring optimal performance.
