ECQ-E4103JFWPanasonic Electronic Components

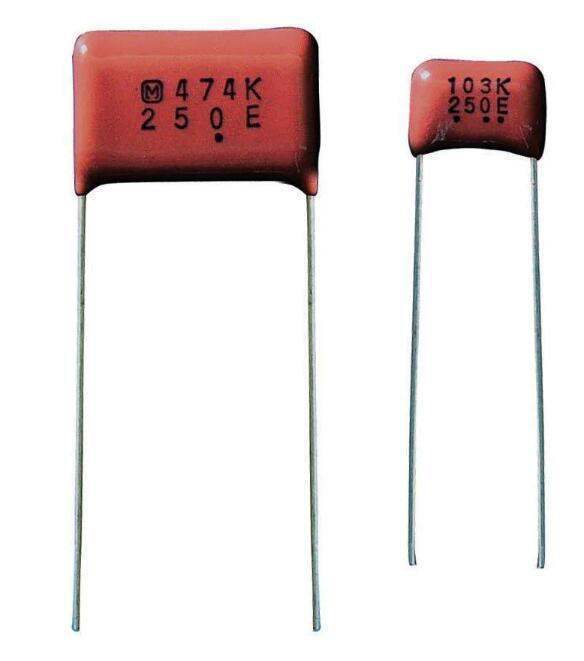

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Category Capacitors Film Capacitors
Packaging  Bulk
Part Status Active
Capacitance 10000 pF
Tolerance ±5%
Operating Temperature -40°C ~ 105°C
Mounting Type Through Hole
Size / Dimension 0.406" L x 0.169" W (10.30mm x 4.30mm)
Height - Seated (Max) 0.488" (12.40mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications General Purpose
Win Source Part Number WS1306027-ECQ-E4103JFW
Ultra Librarian 3D Model Ultra Librarian ECQ-E4103JFW CAD Model

Description

Features<br />● Self-healing property<br /> ● Excellent electrical characteristics ● Flame retardant epoxy resin coating ● RoHS compliant
