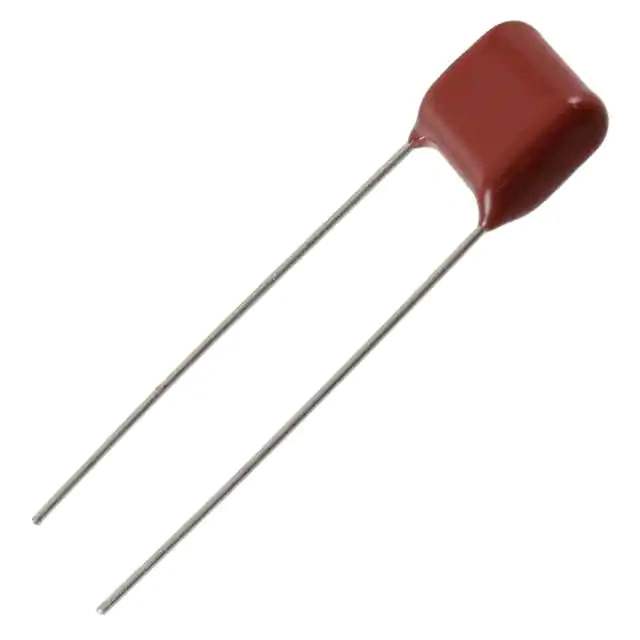

Same model may have multiple batches, images only for reference.

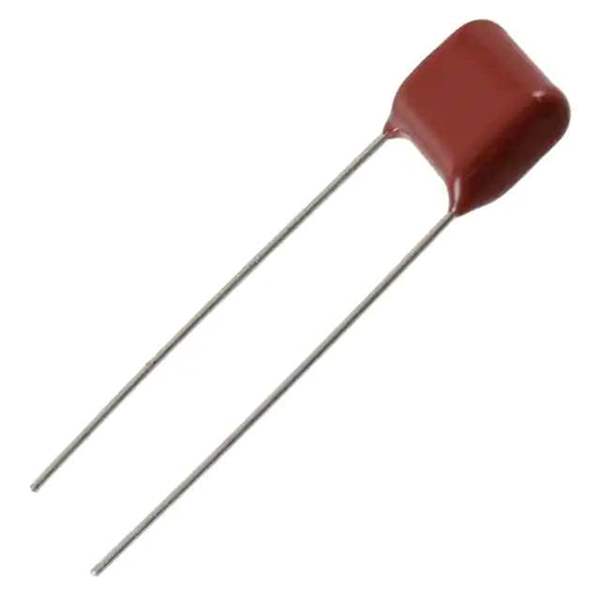

ECQ-E2224KF Real Image
Same model may have multiple batches, images only for reference.

ECQ-E2224KF

Part No ECQ-E2224KF
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.22UF 10% 250VDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic
Series ECQ-E(F)
Package Bulk
Product Status Active
Capacitance 0.22 µF
Tolerance ±10%
Voltage Rating - AC 150V
Voltage Rating - DC 250V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.472" L x 0.217" W (12.00mm x 5.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications General Purpose
Base Product Number ECQ-E2224
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 588032-ECQ-E2224KF
Ultra Librarian 3D Model Ultra Librarian ECQ-E2224KF CAD Model

Description

The ECQ-E(F) series is a film capacitor designed for general purpose applications.

  • Capacitance: 0.22 µF
  • Voltage Rating: 250VDC
  • Size: 0.472" L x 0.217" W (12.00mm x 5.50mm)
  • Height: 0.453" (11.50mm)
  • Termination: PC pin
  • Mounting Type: Through hole
  • Temperature Range: -40°C to 105°C
  • Standard Package: 100 pcs
  • Status: Active
