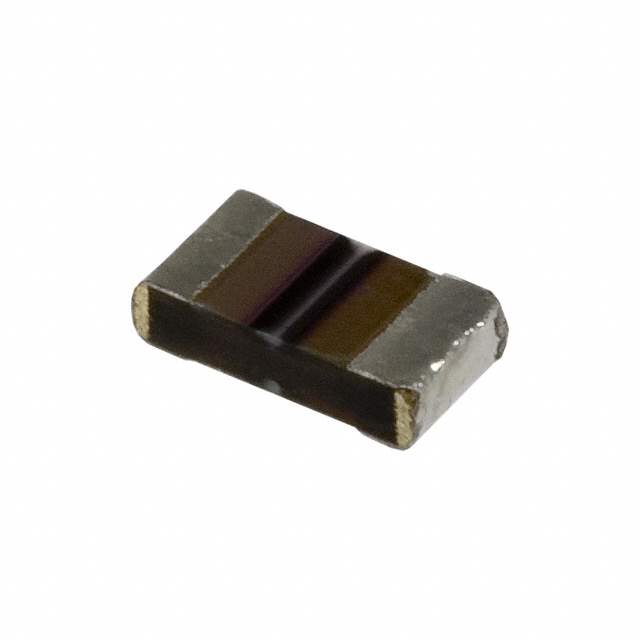

ECP-U1C474MA5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.47μF
Tolerance ±20%
Voltage Rating - DC 16V
Dielectric Material Acrylic, Metallized - Stacked
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications EMI, RFI Suppression
Features Low ESR
Win Source Part Number 136162-ECP-U1C474MA5
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ECP-U1C474MA5 CAD Model

Description

ECP-U1C474MA5 Capacitor

The ECP-U1C474MA5 serves as a robust component suitable for demanding electronic circuits, ensuring efficiency and durability.

  • Capacitance: 470,000 μF
  • Voltage Rating: 16V
  • Temperature Range: -40°C to +105°C

Applications and Projects:

  • Battery management systems
  • Audio equipment
  • Industrial power systems
  • Telecommunications devices

Features and Benefits:

  • High capacitance value for energy storage
  • Temperature stability for consistent performance
  • Low equivalent series resistance (ESR) for effective filtering
  • Compact and reliable design

Perfect for integration into power and audio systems requiring precision and longevity.
