Same model may have multiple batches, images only for reference.

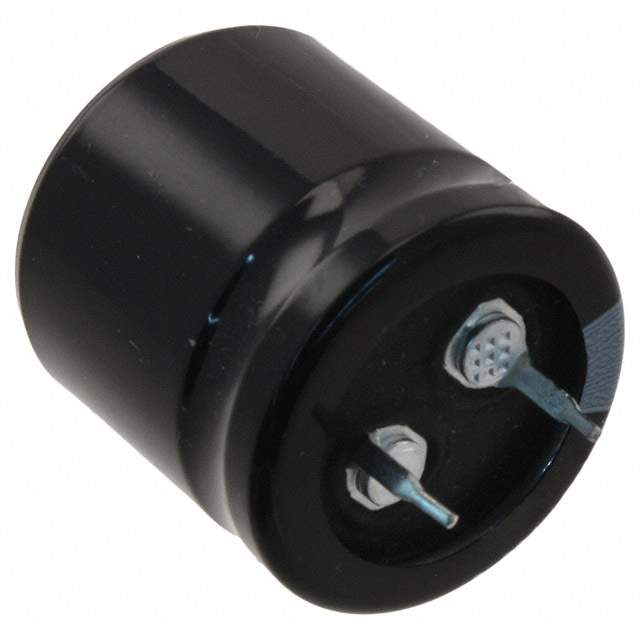

ECO-S2GB101CA Real Image
Same model may have multiple batches, images only for reference.

ECO-S2GB101CA

Part No ECO-S2GB101CA
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 400V SNAP / Cap Aluminum Lytic 100uF 400V 20% (25 X 25mm) Snap-In 10mm 1.658 Ohm 690mA 3000h 105°C Bulk
Datasheet
ECO-S2GB101CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series TS-HB
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 100μF
Tolerance ±20%
Voltage Rating 400V
ESR (Equivalent Series Resistance) 1.658 Ohm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature Range -25°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 690mA @ 120Hz
Ripple Current - High Frequency 786.6mA @ 100kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Maximum) 0.984" (25.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 769412-ECO-S2GB101CA
Popularity Medium
Supply and Demand Status Limited
Family Name TS-HB
Introduction Date September 14, 2000
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ECO-S2GB101CA CAD Model

Description

The 769412-ECO-S2GB101CA is a snap-in radial capacitor from Panasonic Electronic Components' TS-HB series.

  • Capacitance: 100μF
  • Voltage Rating: 400V
  • Applications: General
  • Operating Temperature: -25°C to 105°C
  • Ripple Current: 690mA @ 120Hz (low frequency), 786.6mA @ 100kHz (high frequency)
  • Diameter: 0.984" (25.00mm)
  • Height: 0.984" (25.00mm)
  • Alternatives: 381LQ101M400H012+D, SLP101M400A3P3, B43504A9107M007, B43504A9107M080
