Same model may have multiple batches, images only for reference.

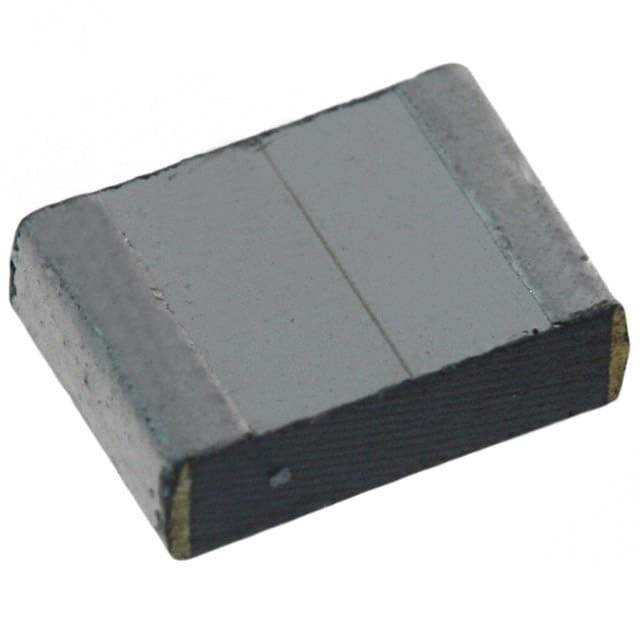

ECH-U1H683GX9 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1H683GX9

Part No ECH-U1H683GX9
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.068UF 2% 50VDC 1913
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic
Series ECH-U(X)
Package Tape & Reel
Product Status Active
Capacitance 0.068 µF
Tolerance ±2%
Voltage Rating - AC 30V
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1913 (4833 Metric)
Size / Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.067" (1.70mm)
Termination Solder Pads
Applications General Purpose
Base Product Number ECH-U1
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 846168-ECH-U1H683GX9
Ultra Librarian 3D Model Ultra Librarian ECH-U1H683GX9 CAD Model

Description

The 846168-ECH-U1H683GX9 is a film capacitor from Panasonic's ECH-U(X) series.

  • Application: General Purpose
  • Capacitance: 0.068μF
  • Tolerance: ±2%
  • Voltage Rating: 30V AC, 50V DC
  • Size: 0.189" L x 0.130" W (4.80mm x 3.30mm)
  • Height: 0.067" (1.70mm)
  • Dielectric Material: Polyphenylene Sulfide (PPS)
  • Construction: Metallized Stacked
  • Package: Tape & Reel
  • Standard Package: 3,000 Pieces
  • Operating Temperature: -55°C to 125°C
