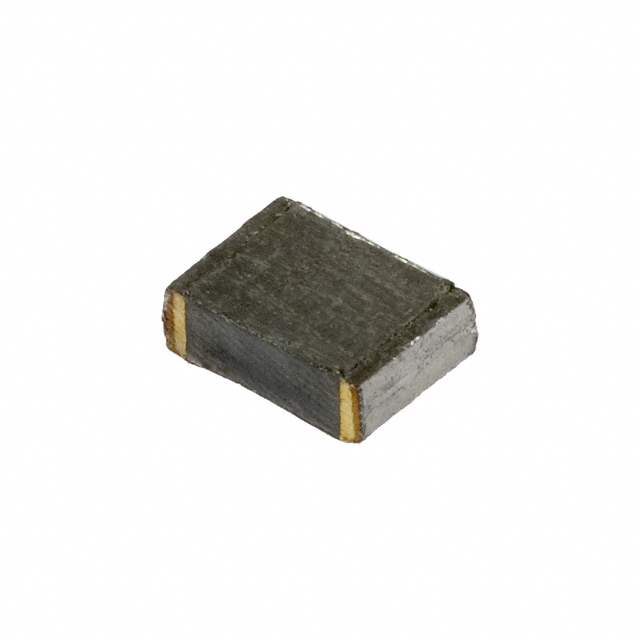

ECH-U1H393JB5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.039μF
Tolerance ±5%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.087" (2.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000920-ECH-U1H393JB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECH-U1H393JB5 CAD Model

Description

Product Overview

The ECH-U1H393JB5 is a top-performing capacitor offering stability and efficiency in electronic designs. Its enhanced features increase reliability across various applications.

Features and Benefits

  • Stable capacitance over a wide temperature range
  • Reduced ESR for improved circuit efficiency
  • Highly compact, facilitating miniaturization

Applications

  • Voltage regulation modules
  • High-frequency circuits
  • Industrial control systems

Additional Details

The ECH-U1H393JB5 features a robust design, ensuring its suitability for long-term use in both commercial and industrial environments.
