Same model may have multiple batches, images only for reference.

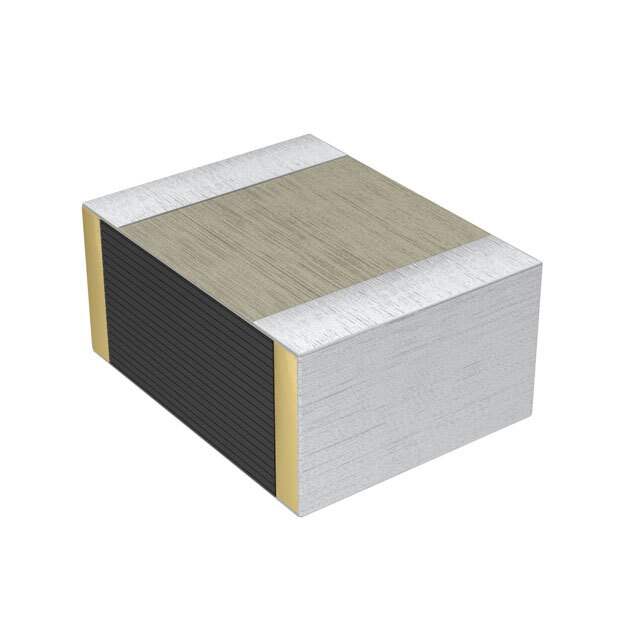

ECH-U1C563GX5 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1C563GX5

Part No ECH-U1C563GX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.056UF 2% 16VDC 1210
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.056μF
Tolerance ±2%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.067" (1.70mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000839-ECH-U1C563GX5
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C563GX5 CAD Model

Description

Product Overview for ECH-U1C563GX5

The ECH-U1C563GX5 capacitor stands out with its ability to handle significant voltages and capacitance, particularly suited for advanced energy and power systems.

Key Features:

  • Capacitance Value: 56000 pF
  • Voltage Rating: 100V
  • Dielectric Type: C0G/NP0
  • Mount Type: SMT
  • Stability: High

Benefits:

  • Exceptionally low thermal drift.
  • Resilient to environmental fluctuations.
  • Ideal for high-capacity energy storage and buffering.
  • Extended lifecycle.

Applications:

  • High-Power LED Drivers
  • Power Backup Systems
  • Inverter Circuits
  • DC-DC Converters
