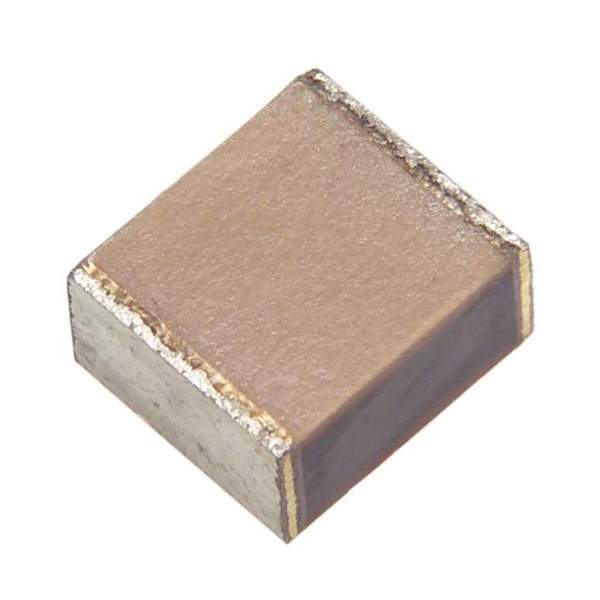

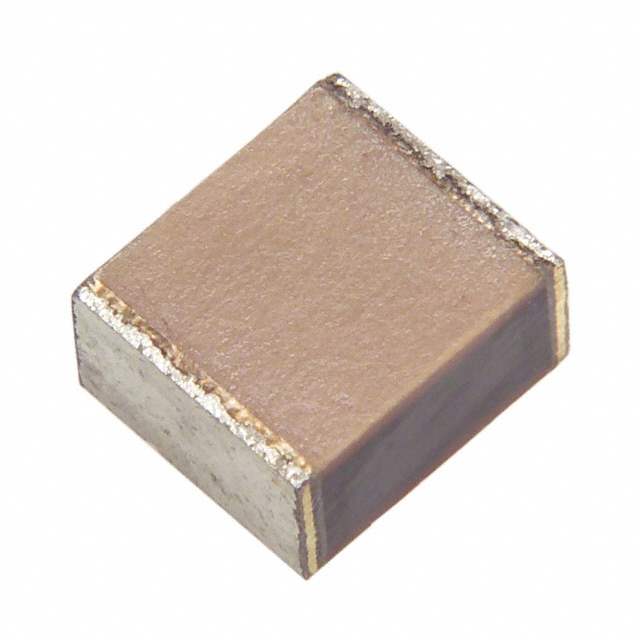

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.15μF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.280" L x 0.248" W (7.10mm x 6.30mm)
Height - Seated (Max) 0.146" (3.70mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 102162-ECH-U1154JCV
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1154JCV CAD Model

Description

Product Overview

The ECH-U1154JCV is a high-performance electronic component designed to meet the demanding needs of modern electronic systems. With its robust construction and reliable performance, this capacitor is ideal for a wide range of applications.

Features and Benefits

  • High capacitance stability over temperature variations
  • Low equivalent series resistance (ESR) for efficient operation
  • Compact size for space-saving designs
  • Long lifespan with superior reliability

Applications

  • Consumer electronics
  • Industrial automation systems
  • Power supply circuits
  • Medical devices

Additional details highlight its suitability for both commercial and industrial applications where consistent performance is crucial.
