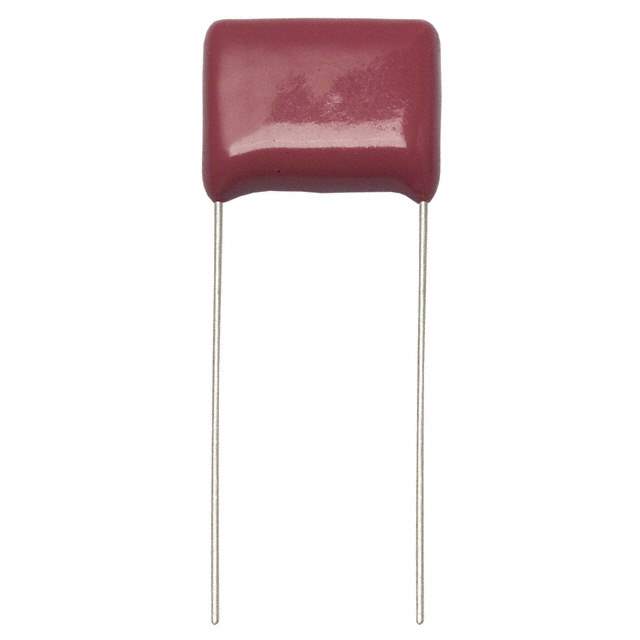

ECH-S1124JZ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series ECHS(Z)
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 0.12μF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS)
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package Radial
Dimension 0.670" L x 0.295" W (17.00mm x 7.50mm)
Height - Seated (Maximum) 0.622" (15.80mm)
Termination PC Pins
Lead Spacing 0.492" (12.50mm)
Applications High Frequency, Switching
Win Source Part Number 776193-ECH-S1124JZ
Popularity Medium
Supply and Demand Status Balance
Family Name ECHS(Z)
Introduction Date August 07, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ECH-S1124JZ CAD Model

Description

The Panasonic Electronic Components electronic component with part number 776193-ECH-S1124JZ is a radial packaged product.

  • Capacitance: 0.12μF
  • Tolerance: ±5%
  • Lead Spacing: 0.492" (12.50mm)
  • Dielectric Material: Polyphenylene Sulfide (PPS)
  • Operating Temperature: -40°C ~ 125°C
  • Voltage Rating: 100V DC
  • Supply and Demand Status: Balanced
