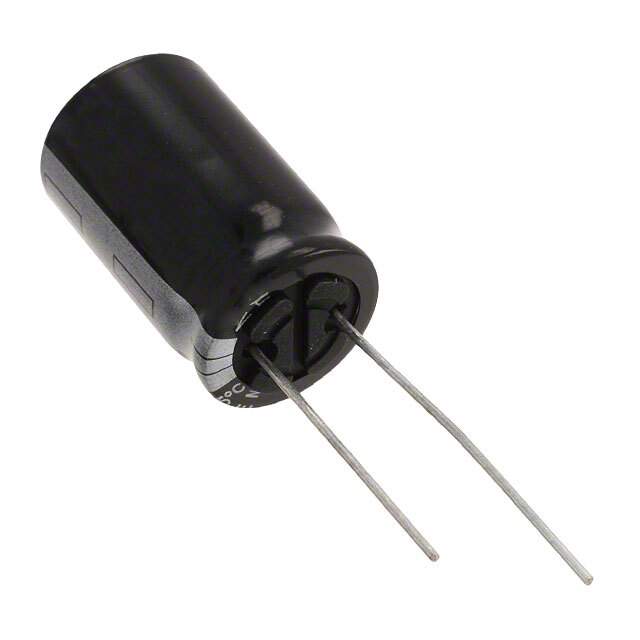

ECA-2DHG101 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series NHG
Packaging Bulk
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 200V
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -25°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 335mA @ 120Hz
Ripple Current - High Frequency 502.5mA @ 100kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Maximum) 1.063" (27.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777891-ECA-2DHG101
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name NHG
Introduction Date September 14, 2000
ECCN EAR99
Country of Origin Japan, Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ECA-2DHG101 CAD Model

Description

The Panasonic Electronic Components 777891-ECA-2DHG101 is a radial, can type aluminum electrolytic capacitor with a capacitance of 100μF and a voltage rating of 200V DC.

  • Capacitance: 100μF
  • Voltage Rating DC: 200V
  • Tolerance: ±20%
  • ESR: Not Specified
  • Lead Spacing: 0.295" (7.50mm)
  • Ripple Current (Low Frequency): 335mA @ 120Hz
  • Ripple Current (High Frequency): 502.5mA @ 100kHz
  • Temperature Range: -25°C to 105°C
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Series: NHG
  • Polarized: Yes
  • Diameter: 0.630" (16.00mm)
  • Height: 1.063" (27.00mm)
  • Alternative Parts: UVR2D101MHD, UVK2D101MHD, UVZ2D101MHH, RGA101M2D-1636
  • Country of Origin: Japan and Malaysia
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
  • Quantity per Package: 100
