Product Overview: TUSB8042RGCT by Texas Instruments

The TUSB8042RGCT is a high-performance, market-leading USB 3.0 hub controller from Texas Instruments that offers seamless connectivity and extended functionality for various USB-enabled devices. This advanced integrated circuit is designed to support up to four downstream ports, providing a versatile solution for expanding USB capabilities in consumer electronics, computing devices, and industrial applications.

Key Features

• USB 3.0 Compliance: The TUSB8042RGCT conforms to the SuperSpeed USB 3.0 specification, ensuring fast data transfer rates of up to 5 Gbps.
• Multiple Downstream Ports: With four downstream ports, this hub controller can manage multiple devices simultaneously, making it ideal for systems that require additional USB ports.
• Backward Compatibility: It is backward compatible with USB 2.0 and 1.1 devices, ensuring a wide range of device interoperability.
• Efficient Power Management: The device features efficient power management options, including individual port power control and over-current protection.
• Configurability: The hub controller can be configured either through pin strapping or via an I2C interface, providing flexibility for different use cases and system requirements.
• Robust Design: The TUSB8042RGCT is designed to withstand electrostatic discharge (ESD) events, enhancing the durability and longevity of the device.

Applications

The versatility of the TUSB8042RGCT makes it suitable for a broad array of applications, including:

• Desktop and laptop computers
• Docking stations
• Monitors with USB hubs
• Port replicators
• Home entertainment systems
• Industrial control equipment

Technical Specifications

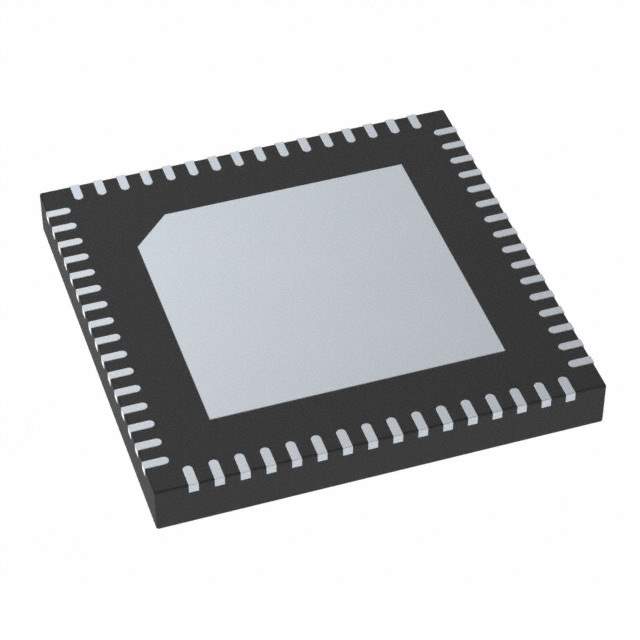

The TUSB8042RGCT is offered in a 64-pin VQFN (RGCT) package, providing a compact footprint for space-constrained applications. It operates over a wide temperature range, making it suitable for industrial environments. The device also supports battery charging specifications, which is an essential feature for modern portable electronics.

For designers and engineers looking to integrate USB 3.0 hub functionality into their products, the TUSB8042RGCT from Texas Instruments represents a reliable and efficient solution backed by the quality and support TI is known for.
