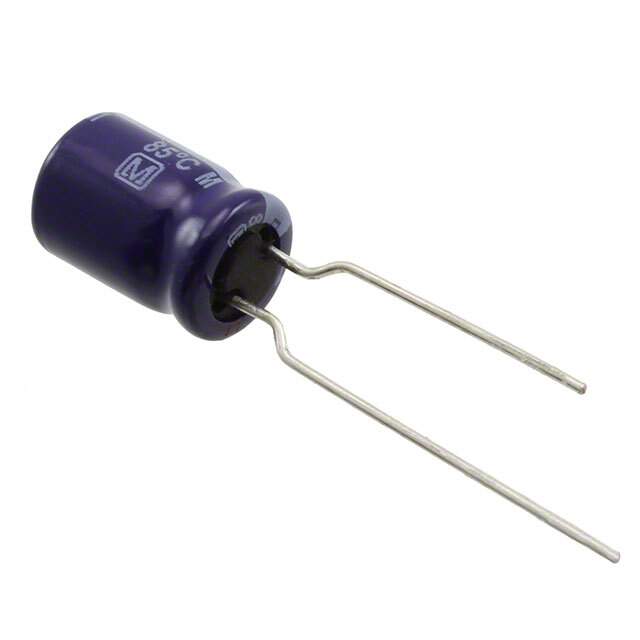

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 350 mA @ 120 Hz
Ripple Current @ High Frequency 595 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
Base Product Number ECA-1VM
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P5166,ECA1VM221
Standard Package 200
Win Source Part Number 1328572-ECA-1VM221
Ultra Librarian 3D Model Ultra Librarian ECA-1VM221 CAD Model

Description

The Panasonic Electronic Components ECA-1VM221 is an aluminum electrolytic capacitor with a capacitance of 220 µF and a tolerance of ±20%.

  • Capacitance: 220 µF
  • Tolerance: ±20%
  • Voltage Rating: 35V
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Size/Dimension: 0.315" Dia (8.00mm)
  • Height: 0.492" (12.50mm)
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.138" (3.50mm)
  • Packaging: Bulk
  • Family: ECA-1VM
  • Temperature Range: -40°C to 85°C
  • Part Status: EAR99
  • Ripple Current: 350 mA @ 120 Hz and 595 mA @ 10 kHz
