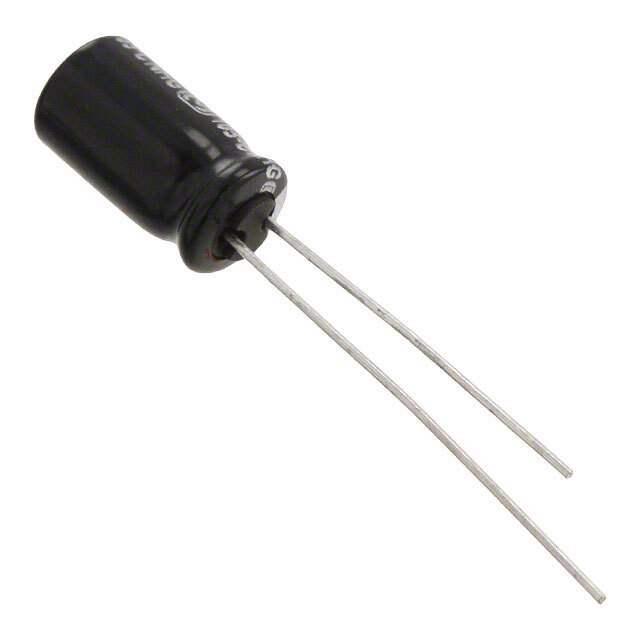

ECA-1EHG101 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series NHG-A
Package Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 130 mA @ 120 Hz
Ripple Current @ High Frequency 195 mA @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.480" (12.20mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1EH
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names ECA1EHG101,Q6758717A,P5540
Standard Package 200
Win Source Part Number 1056753-ECA-1EHG101
Ultra Librarian 3D Model Ultra Librarian ECA-1EHG101 CAD Model

Description

The Panasonic Electronic Components 1056753-ECA-1EHG101 is an aluminum electrolytic capacitor that is part of the general-purpose category.

  • Series: NHG-A
  • Capacitance: 100 µF
  • Tolerance: ±20%
  • Voltage Rating: 25V
  • Lead Spacing: 0.098 inches
  • Height: 0.480 inches
  • Standard Package: 200
  • Mounting: through the hole
  • Package/Case: radial, can
  • Operating Temperature Range: -55°C to 105°C
  • This component is: ideal for use in electronic devices that require a stable capacitance.
