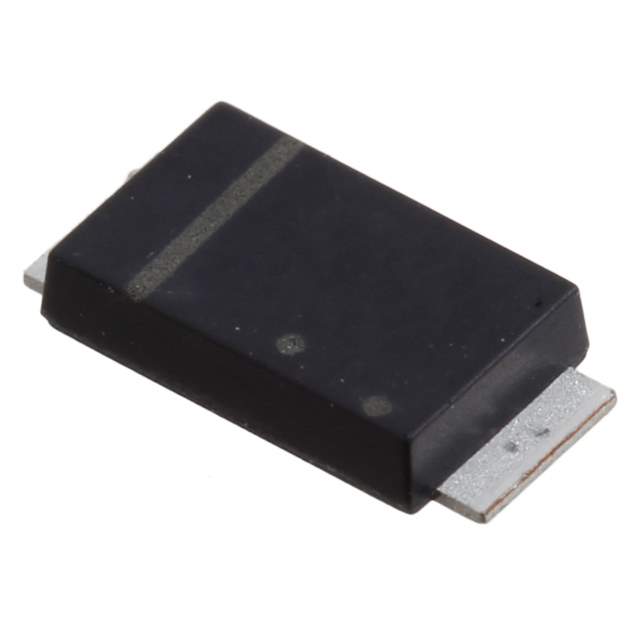

DZ2424000L Real Image
Same model may have multiple batches, images only for reference.

DZ2424000L

Part No DZ2424000L
Manufacturer Panasonic
Catalog Diodes - Zener - Single
Description DIODE ZENER 24V 2W TMINIP2  /  Zener Diode 24 V 2 W ±5% Surface Mount TMiniP2-F2-B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Panasonic Electronic Components
Package Tape & Reel
Voltage - Zener (Nom) (Vz) 24 V
Tolerance ±5%
Power - Max 2 W
Impedance (Max) (Zzt) 30 Ohms
Current - Reverse Leakage @ Vr 10 µA @ 17 V
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 200 mA
Mounting SMD (SMT)
Package / Case SOD-128
Supplier Device Package TMiniP2-F2-B
Base Product Number DZ24240
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0050
Other Names DZ2424000LDKR,DZ2424000LTR,DZ2424000LCT
Standard Package 3,000
Win Source Part Number 1056568-DZ2424000L
Ultra Librarian 3D Model Ultra Librarian DZ2424000L CAD Model

Description

The DZ2424000L is a zener diode that is designed for use in electronic circuits that require voltage regulation and protection. DZ2424000L from Panasonic Electronic Components.

  • Voltage Rating: 24V
  • Power Rating: 2W
  • Voltage Forward: 1.2V @ 200mA
  • Maximum Reverse Leakage Current: 10µA @ 17V
  • Tolerance: ±5%
  • Impedance: 30 Ohms
  • Mounting Type: Surface Mount Technology (SMT)
  • Package: SOD-128
