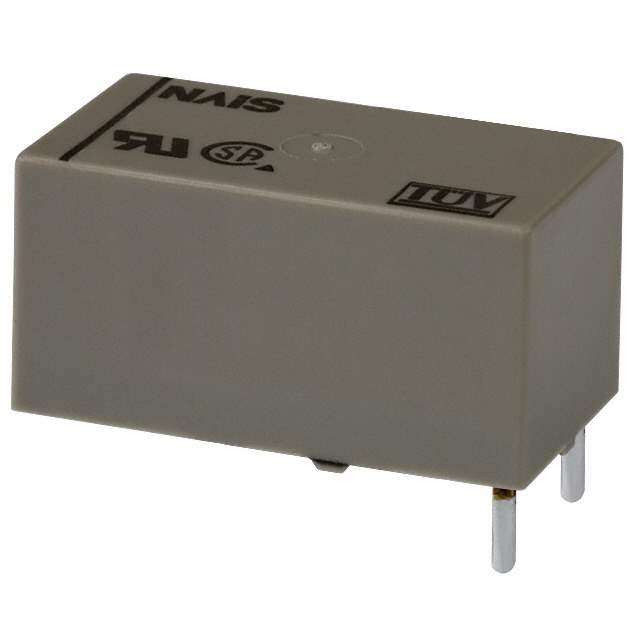

DSP1A-DC24V-R Real Image
Same model may have multiple batches, images only for reference.

DSP1A-DC24V-R

Part No DSP1A-DC24V-R
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V
Datasheet
DSP1A-DC24V-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 12.5mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 300 mW
Coil Resistance 1.92 kOhms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 144517-DSP1A-DC24V-R
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian DSP1A-DC24V-R CAD Model

Description

DSP1A-DC24V-R

The DSP1A-DC24V-R is a reliable single pole relay, designed to operate seamlessly in environments with 24V DC power supplies. It functions efficiently in circuit isolation and switching applications, offering dependable performance.

  • Applications:
    • Industrial automation systems
    • Power distribution switches
    • Home automation devices
  • Features and Benefits:
    • Compact design for ease of integration
    • High switching capacity?
    • Quick response time for rapid operations
  • Additional Details:
    • Long mechanical lifespan for durability
    • Wide operating temperature range for diverse environments
