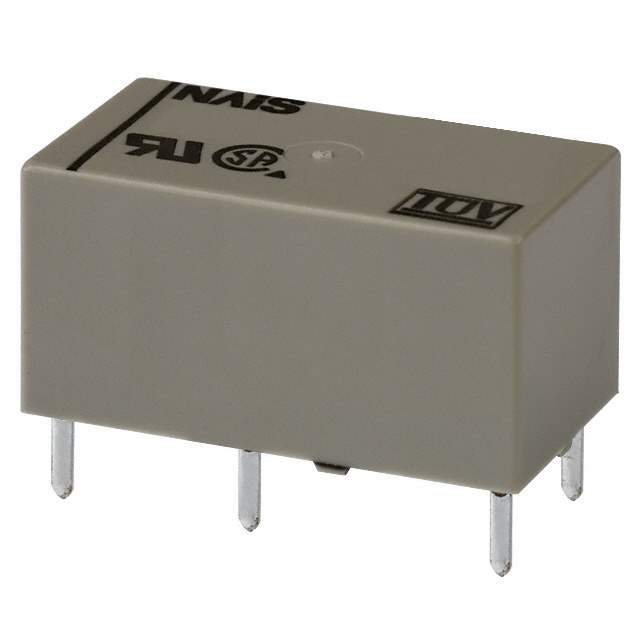

DSP1-L2-DC12V-F Real Image
Same model may have multiple batches, images only for reference.

DSP1-L2-DC12V-F

Part No DSP1-L2-DC12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 12V / Power Relay 12VDC 5A SPST-NO/SPST-NC(20.2x11x10.5)mm THT
Datasheet
DSP1-L2-DC12V-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series DSP
Packaging Bulk
Relay Type General
Coil Type Latching, Dual Coil
Coil Current 25mA
Coil Voltage 12VDC
Contact Form DPST-NO/NC (1 Form A and B)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Maximum) 9.6 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 300 mW
Coil Resistance 480 Ohms
Operating Temperature Range -40°C ~ 65°C
Win Source Part Number 773424-DSP1-L2-DC12V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name DSP
Introduction Date December 01, 2003
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian DSP1-L2-DC12V-F CAD Model

Description

The Panasonic Electric Works DSP1-L2-DC12V-F relay is a dual-coil latching relay with a DPST-NO/NC contact form.

  • Coil Voltage: 12VDC
  • Coil Resistance: 480 Ohms
  • Series: DSP
  • Features: Fully Sealed
  • Temperature Range: -40°C to 65°C
  • Maximum Switching Voltage: 250VAC, 30VDC
  • Release Time: 5ms
  • Operate Time: 10ms
  • Contact Rating: 5A
  • Coil Power: 300mW
  • Packaging: Bulk
  • Popularity: Medium
  • Estimated EOL Date: 2024
