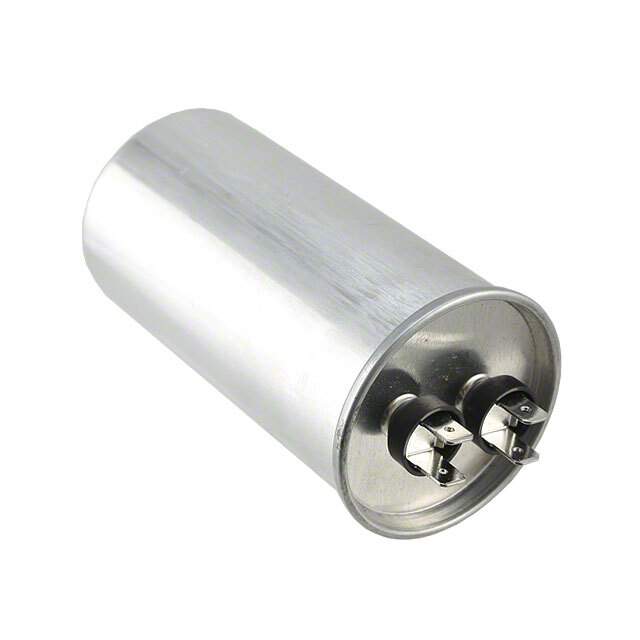

DS371506-CA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series DMF
Package Bulk
Product Status Not For New Designs
Capacitance 50 µF
Tolerance ±10%
Voltage Rating - AC 370V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -25°C ~ 70°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 1.988" Dia (50.50mm)
Height - Seated (Max) 4.409" (112.00mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.709" (18.00mm)
Applications Motor Run
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0020
Other Names P9669,BUM37X5005C,DS371506CA
Standard Package 50
Win Source Part Number 1004810-DS371506-CA
Ultra Librarian 3D Model Ultra Librarian DS371506-CA CAD Model

Description

The 1004810-DS371506-CA capacitor is a DMF series film capacitor designed for motor run applications from Panasonic Electronic Components.

  • Series: DMF
  • Capacitance: 50 µF
  • Tolerance: ±10%
  • Voltage Rating (AC): 370V
  • Height: 4.409" (112.00mm) when seated
  • Package: Bulk
  • Standard Package: 50
  • Termination Style: Quick connect, disconnect
  • Mounting: Chassis mount (requires holder/bracket)
  • Dielectric Material: Polypropylene (PP), metallized
  • Package/Case: Radial, can
  • Operating Temperature: -25°C to 70°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8532.25.0020
  • Other Names: P9669, BUM37X5005C, and DS371506CA
  • Product Status: Not for new designs
