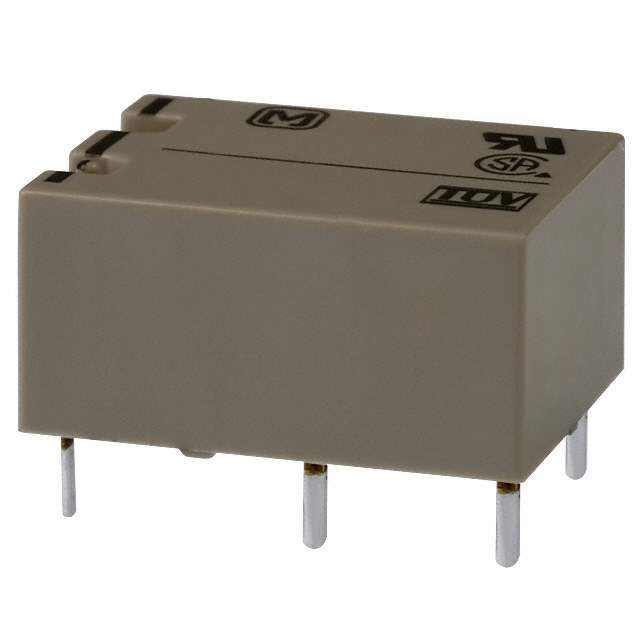

DK1A1B-L2-24V Real Image
Same model may have multiple batches, images only for reference.

DK1A1B-L2-24V

Part No DK1A1B-L2-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 24V / General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DK
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 8.3 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Operate Time 10 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number DK1A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names DK1A1B-L2-24V-NDR,255-2190,DK1A1BL224V,DK1A1B-L2-24V-ND
Standard Package 50
Win Source Part Number 1055291-DK1A1B-L2-24V
Ultra Librarian 3D Model Ultra Librarian DK1A1B-L2-24V CAD Model

Description

The DK series power relay from Panasonic Electric Works is a high-quality relay designed for use in a variety of applications.

  • Contact Form: DPST-NO/NC (1 Form A, 1 Form B)
  • Contact Material: Silver Nickel (AgNi)
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3 mA
  • Operate Time: 10 ms
  • Relay Type: General Purpose
  • Coil Type: Latching, Dual Coil
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 8 A
  • Switching Voltage: 250VAC, 125VDC - Max
  • Release Time: 8 ms
  • Seal Rating: Sealed - Fully
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 65°C
