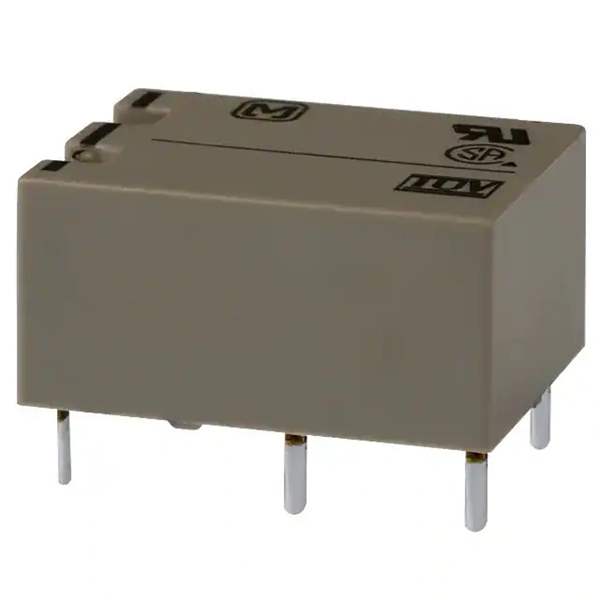

DK1A-5V Panasonic
Same model may have multiple batches, images only for reference.

DK1A-5V

Part No DK1A-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DK
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number DK1A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1355492-DK1A-5V
Ultra Librarian 3D Model Ultra Librarian DK1A-5V CAD Model

Description

The 1355492-DK1A-5V is a power relay from Panasonic Electric Works. It belongs to the DK series and has a coil voltage of 5VDC.

  • Series: DK
  • Coil Voltage: 5VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 10 A
  • Switching Voltage: Up to 250VAC and 125VDC
  • Operating Temperature: -40°C to 65°C
  • Mounting Type: Through-Hole
  • Package: Tube
  • Coil Current: 40 mA
  • Must Operate Voltage: 3.5 VDC
  • Must Release Voltage: 0.5 VDC
  • Construction: Sealed
  • REACH: Unaffected
  • ECCN: EAR99
  • Product Status: Obsolete
