Products specifications

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 550mV @ 100mA
Reverse Recovery Time (trr) 800ps
Current - Reverse Leakage @ Vr 15μA @ 30V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)

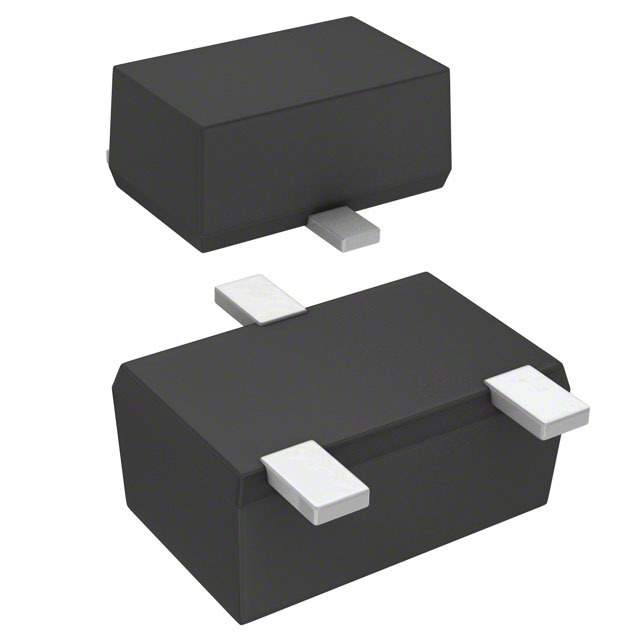

Case / Package SMini3-F2-B
Win Source Part Number 013819-DB3J316F0L
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DB3J316F0L CAD Model

Description

DB3J316F0L General-Purpose Diode

The DB3J316F0L is a versatile general-purpose diode that offers reliable performance across many applications. Its efficient operation and sturdy construction make it a go-to choice for both hobbyists and professional engineers.

  • Key Features:
    • Wide application range
    • Consistent and reliable performance
    • Durability in various environmental conditions
    • Simplifies circuit designs
  • Application Areas:
    • Consumer electronics
    • DIY electronic projects
    • Industrial control systems
    • Basic rectification and switching tasks
  • Benefits:
    • Provides consistent voltage regulation
    • Adapts to different circuit requirements
    • Easy to integrate into wide-ranging designs

Choose the DB3J316F0L for dependable and flexible solutions in your electronic endeavors.
