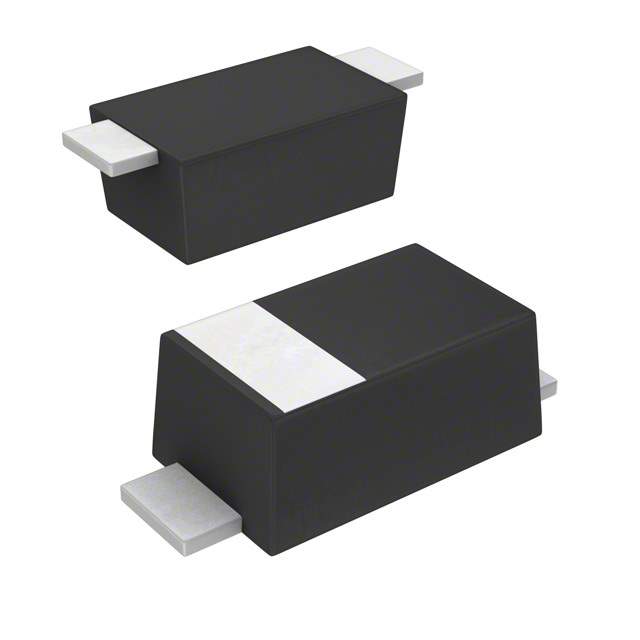

DB2W40300L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 3A (DC)
Voltage - Forward (Vf) (Max) @ If 540mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 15ns
Current - Reverse Leakage @ Vr 250μA @ 40V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F3-B
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1032672-DB2W40300L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB2W40300L CAD Model

Description

The DB2W40300L is a high-quality Schottky diode that is designed for use in a wide range of applications. It is manufactured by Panasonic Electronic Components.

  • Package: reel
  • Voltage - DC Reverse (Vr) (max): 40V
  • Current - Average Rectified (Io): 3A (DC)
  • Voltage - Forward (Vf) (max) @ If: 540mV @ 3A
  • Reverse Recovery Time (trr): 15ns
  • Current - Reverse Leakage @ Vr: 250μA @ 40V
  • Capacitance @ Vr, F: 50pF @ 10V, 1MHz
  • Operating Temperature - Junction: 150°C (max)
  • Package / Case: Mini2-F3-B
  • Speed (Frequency): fast recovery = 200mA (Io)
