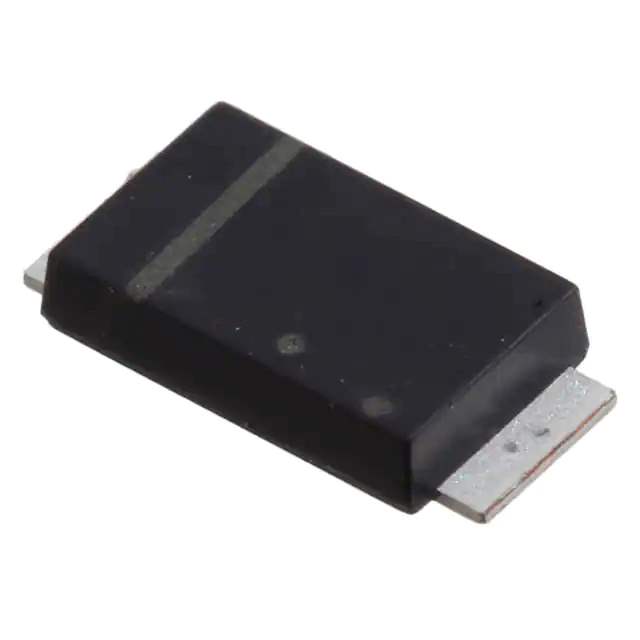

DB2460500L Real Image
Same model may have multiple batches, images only for reference.

DB2460500L

Part No DB2460500L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTT 60V 1A TMINIP2-F2-B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panasonic
Package Tape & Reel
Product Status Discontinued
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 450 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 12 ns
Current - Reverse Leakage @ Vr 350 µA @ 60 V
Capacitance @ Vr, F 40pF @ 10V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-128
Supplier Device Package TMiniP2-F2-B
Operating Temperature - Junction 150°C (Max)
Base Product Number DB24605
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584118-DB2460500L
Ultra Librarian 3D Model Ultra Librarian DB2460500L CAD Model

Description

The DB2460500L is a fast recovery diode from Panasonic.

  • Type: Single diode
  • Application: Rectification
  • Maximum Reverse Voltage: 60V
  • Average Rectified Current: 1A
  • Recovery Time: 500ns
  • Forward Voltage: 450mV @ 1A
  • Package: SOD-128
  • Mounting Type: Surface mountable
  • Package Quantity: 3,000 pieces
  • Application: Power supply circuits, voltage regulators, and other electronic devices
