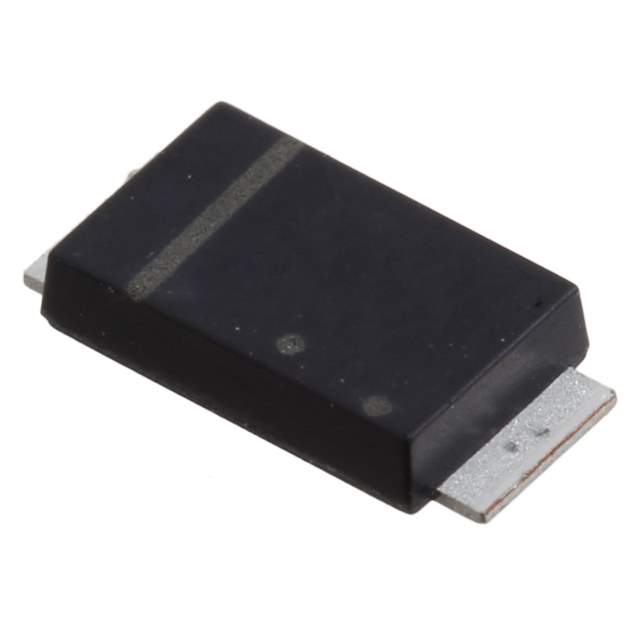

DB2441700L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 540mV @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 300μA @ 40V
Capacitance @ Vr, F 95pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package TMiniP2-F2-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 104356-DB2441700L
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian DB2441700L CAD Model

Description

DB2441700L

The DB2441700L is designed to meet the needs of modern electronic systems, offering cutting-edge performance enhancements and stability.

  • Applications:
    • Embedded systems
    • Data transfer equipment
    • Robotics
    • High-speed computing
  • Features and Benefits:
    • High-speed operation reducing latency.
    • Rugged design for operation in harsh environments.
    • Low profile shape for flexible system design.
    • Advanced heat dissipation for extended performance.
  • Additional Details: With a focus on compatibility, the DB2441700L integrates seamlessly with existing systems, providing reliable and efficient upgrades and extensions.
